Machine programming assignment question

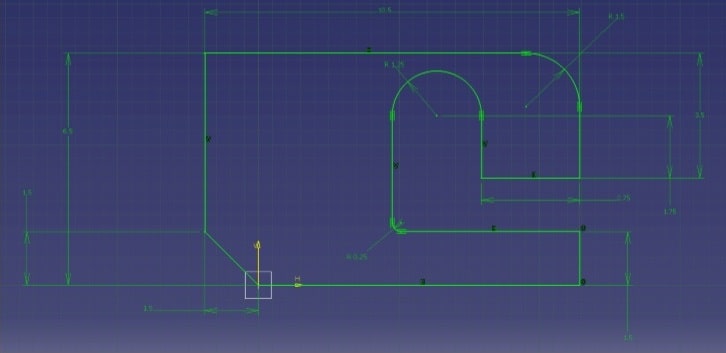

Provide the hand written G and M code program to machine the follow part shown below, the program must include the following

  • Manually program the 2D profile using a .500” Diameter tool (T1) and ensure the final part dimensions are as shown below. (Hint. Ensure to apply the correct offsets)
  • Cut the profile 1.00” inches deep
  • Use the proper program format to include the proper G & M codes, feeds and speeds, header etc covered in class.

Machine programming assignment question

2. Manually program the same part above, but this time using cutter compensation.
