Heat transfer to mercury filled tube

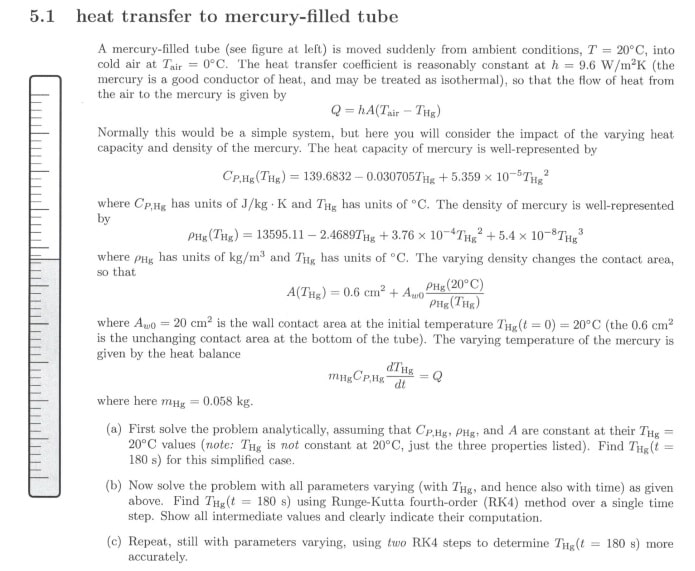

Heat transfer to mercury filled tube Image 1
Heat transfer to mercury filled tube Image 2
Heat transfer to mercury filled tube Image 3
Heat transfer to mercury filled tube Image 4
