you execute alter diskgroup add disk command add t

You execute alter diskgroup add disk command add the disks

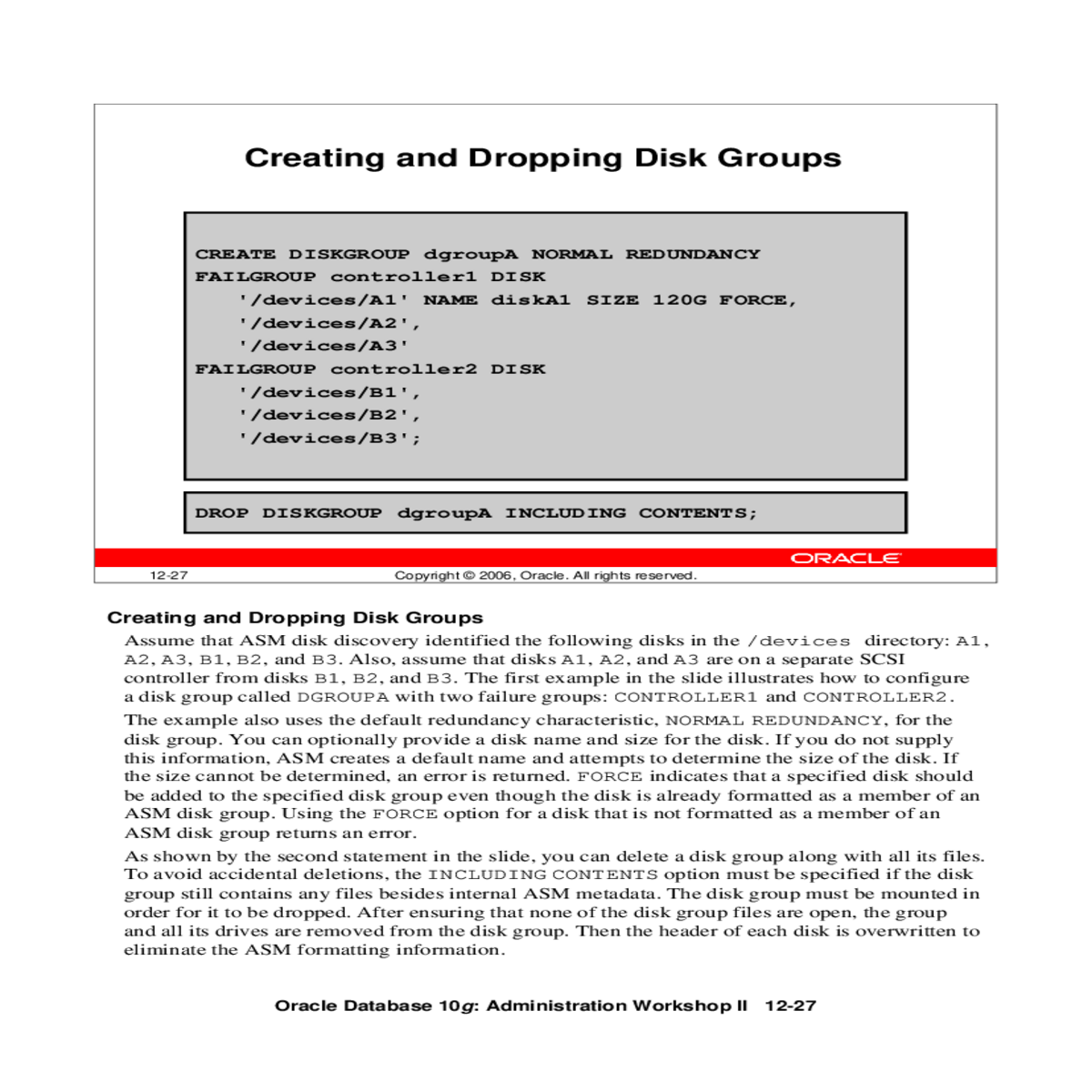

Creating and Dropping Disk Groups

'/devices/A1' NAME diskA1 SIZE 120G FORCE, '/devices/A2',
FAILGROUP controller2 DISK

Assume that ASM disk discovery identified the following disks in the /devices directory: A1, A2, A3, B1, B2, and B3. Also, assume that disks A1, A2, and A3 are on a separate SCSI controller from disks B1, B2, and B3. The first example in the slide illustrates how to configure a disk group called DGROUPA with two failure groups: CONTROLLER1 and CONTROLLER2.

The example also uses the default redundancy characteristic, NORMAL REDUNDANCY, for the disk group. You can optionally provide a disk name and size for the disk. If you do not supply this information, ASM creates a default name and attempts to determine the size of the disk. If the size cannot be determined, an error is returned. FORCE indicates that a specified disk should be added to the specified disk group even though the disk is already formatted as a member of an ASM disk group. Using the FORCE option for a disk that is not formatted as a member of an ASM disk group returns an error.

'/dev/rdsk/c0t4d0s2' NAME A5,
'/dev/rdsk/c0t5d0s2' NAME A6,
'/dev/rdsk/c0t6d0s2' NAME A7,
'/dev/rdsk/c0t7d0s2' NAME A8;

ALTER DISKGROUP dgroupA ADD DISK '/devices/A*';

Adding Disks to Disk Groups

This example shows how to add disks to a disk group. You execute an ALTER DISKGROUP ADD DISK command to add the disks. The first statement adds four new disks to the DGROUPA disk group.

The second command adds A4 to the DGROUPA disk group. It ignores the other disks, even though they match the discovery string, because they are already part of the DGROUPA disk group. As shown by the diagram, when you add a disk to a disk group, the ASM instance ensures that the disk is addressable and usable. The disk is then formatted and rebalanced. The rebalance process is time consuming because it moves AUs from every file onto the new disk.

Oracle Database 10g: Administration Workshop II 12-28
