Solved Step by Step With Explanation- Amplifier Gain and Inductance

Questions

Answers

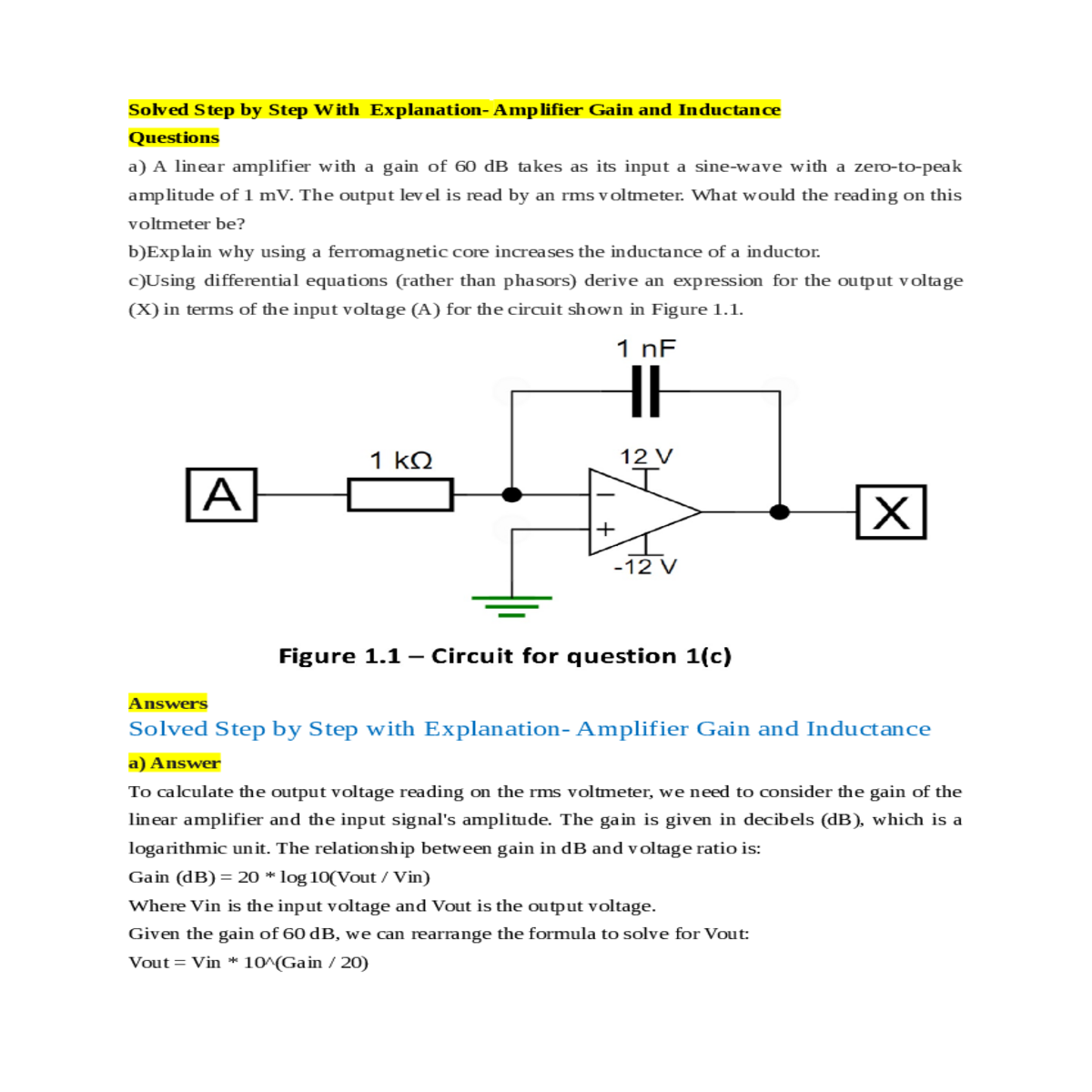

Solved Step by Step with Explanation- Amplifier Gain and Inductance

Given the gain of 60 dB, we can rearrange the formula to solve for Vout:

Vout = Vin * 10^(Gain / 20)

So, the reading on the rms voltmeter would be 1 /1.414=0.707V

b) Answer

Derivation of the output voltage expression for the circuit shown in Figure 1.1:

We can use Kirchhoff's voltage law (KVL) to write the following equation for the circuit:

V_C is the voltage across the capacitor

The voltage across the capacitor is given by:

Substituting these equations into the KVL equation, we get:

VA−Vx−C×dVx/dt=0
