Fixes Left

Part A

Vision Statement

Problem Description

Coffee shops are often busy in the morning hours with people wanting coffee early in the morning on their way to work. Due to this, many coffee shops become overcrowded and overwhelmed with the amount of incoming orders. The problem with this is that some customers become irritated with the wait time and end up leaving resulting in a loss of profit for the coffee shops. With this problem in hand, the company requires a system that can allow customers to place orders ahead of time, as well as a subscription-based order system.

Business Benefits

• Allows for better planning for Morning Staff Schedules(?), thereby preventing overstaffing on morning shifts.

• Creates an online presence, thereby expanding their advertisement and expanding their contact range to new/old customers

System Capabilities

• Notifying customers

• Order Status

• Online Payment

List of Subsystems

• Order Subsystem

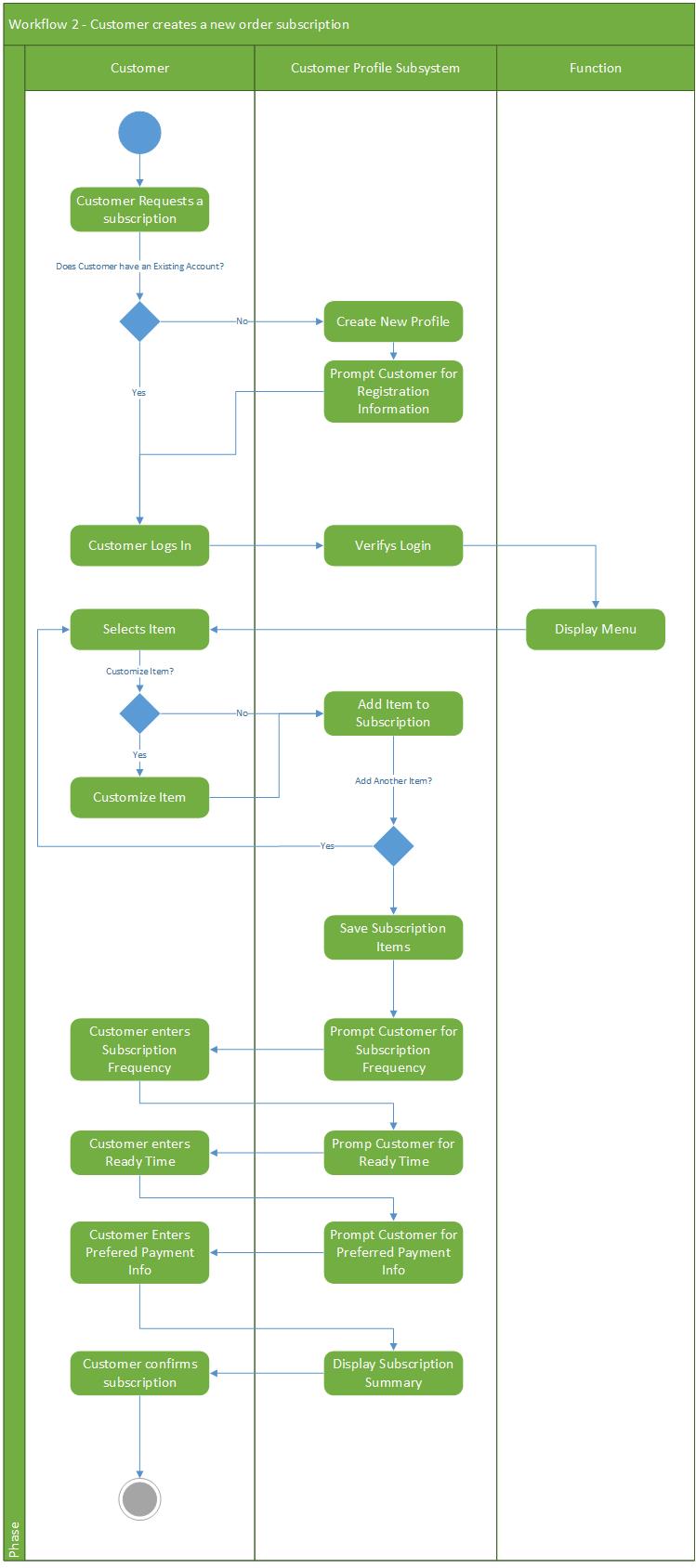

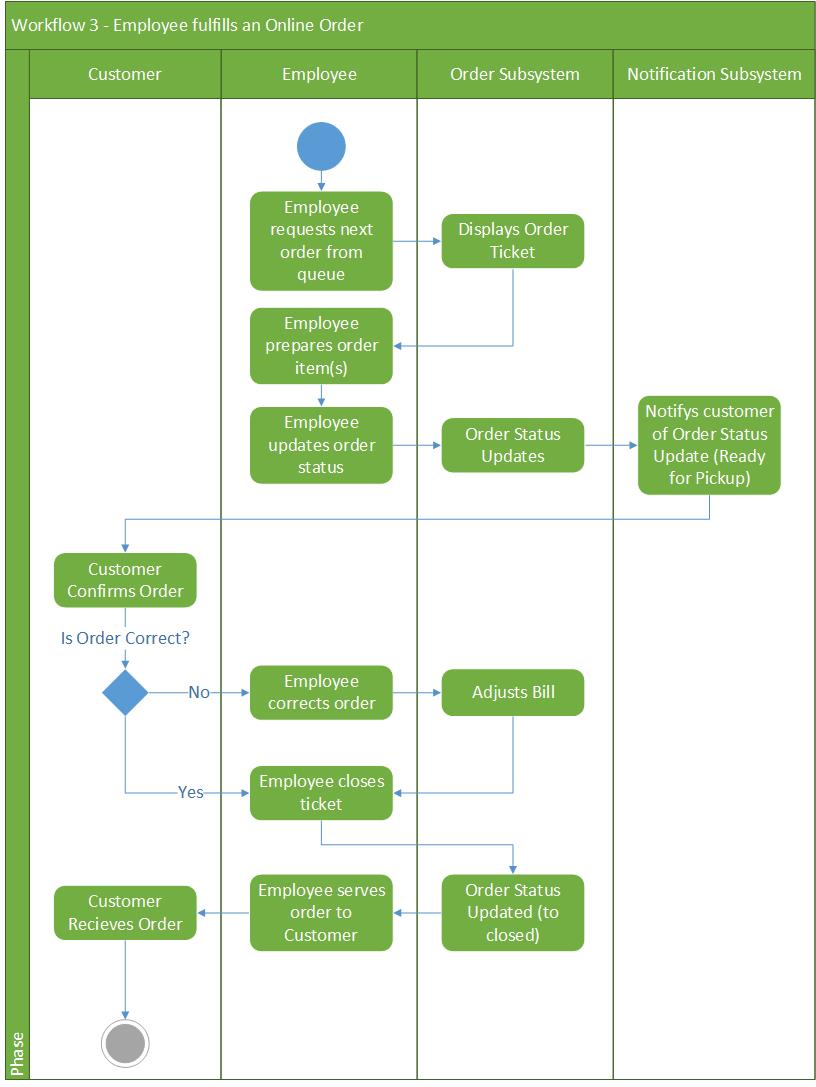

UML Activity Diagrams

Use Case Diagrams

Customer Account

Menu

Notification

Order

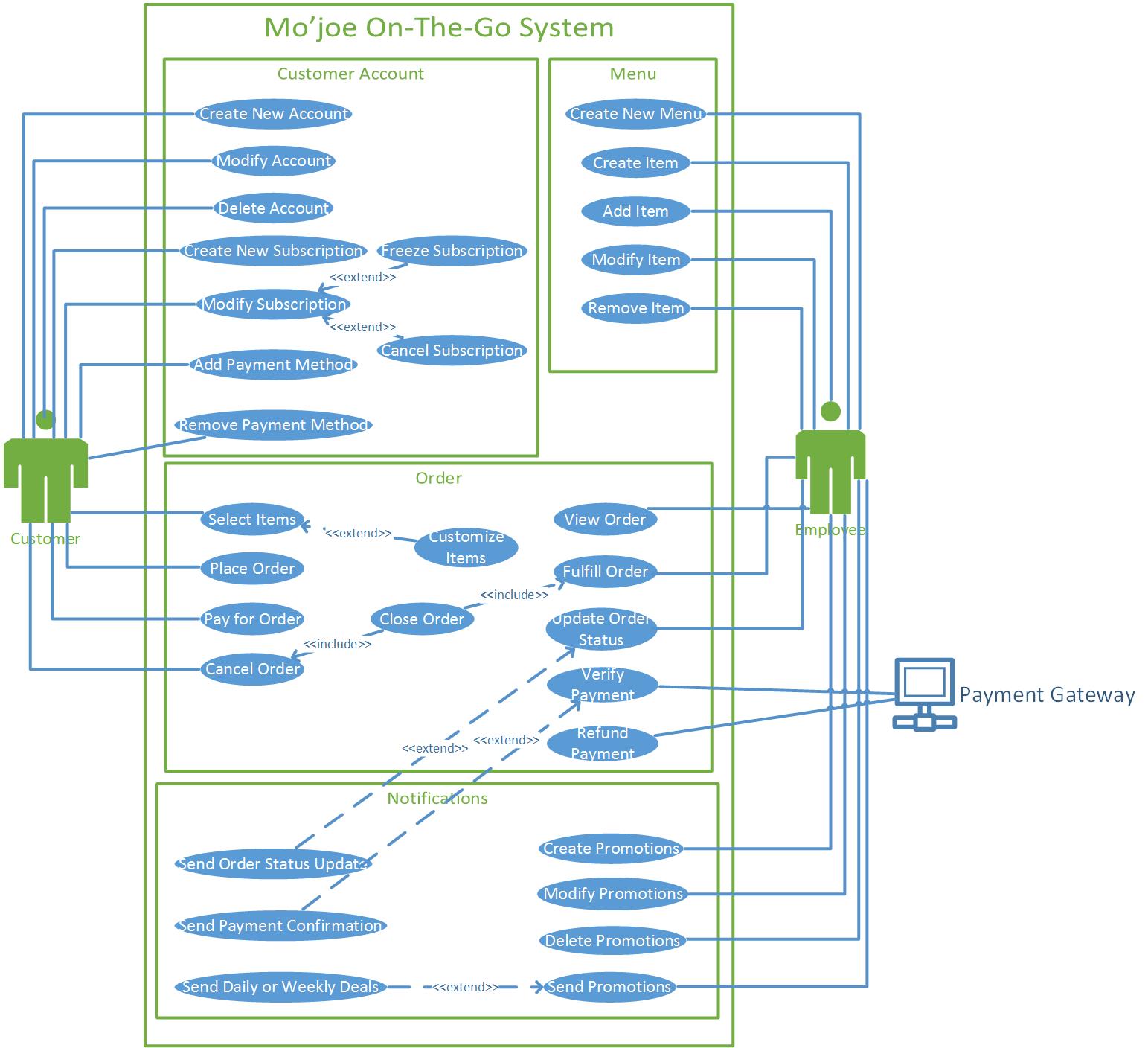

Structured Use Case Diagrams

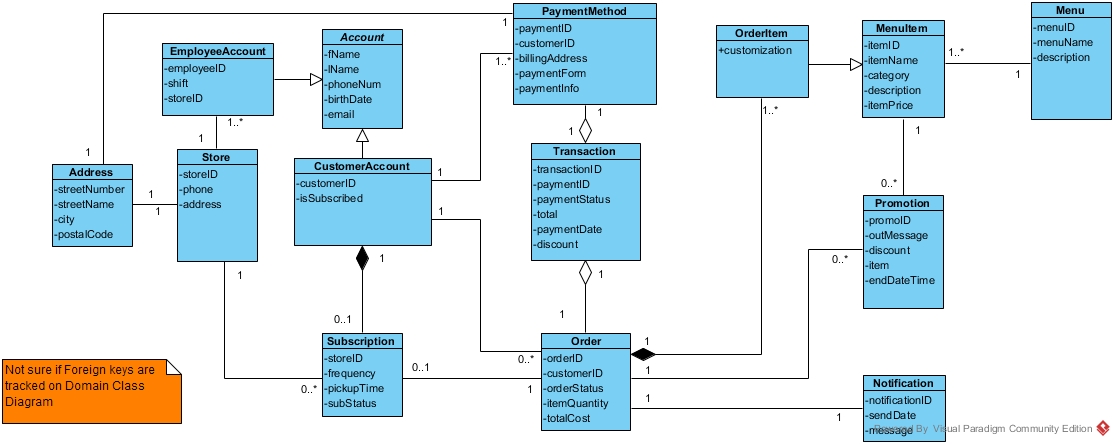

Domain Class Diagram

ERD

Technology Tools

Planning and Analysis Tools

Discord, Skype: Meetings and Communication

Google Drive: Collaborative Storage Space

Tools for Future Steps

Use Cases & Actors by Subsystem (with Use Case Descriptions)

Order Subsystem

Use Cases:

• Select Items: Customer chooses item, system retrieves item data, generates customer order, adds item to customer’s order, and displays order containing chosen item to customer

• Customer chooses customizations to apply to item

• System receives customizations, applies it to item on order, updates order, and displays item with customizations

• System receives payment method, prompts user for confirmation

• Customer confirms payment

• Employee closes the order when order has been completed

• Verify payment: Verifies payment information is correct

• Employee requests to view customer order

• System displays customer order to employee

Customer Account Subsystem

• Create New Account:

• Creates a new Customer Account in the system

• Delete Account:

• Customer requests to delete customer account

• Customer inputs data

• System receives data and saves to customer’s subscription

• Remove Payment Method:

• Customer removes selected payment information

• Cancel Subscription:

• Customer requests deletion of subscription from their account

Notification Subsystem

• Send Daily or Weekly deals

• System displays a notification of daily and weekly deals to customer

• Create Promotions

• Employee enters promotion data and scheduled message send time

Menu Subsystem

• System creates menu

• Create Item: Creates a new Menu Item

• System adds item to chosen menu

• Modify Item: Modifies specified item

• • System receives request and deletes item

Full Use Case Template

User Stories

Order Subsystem

• • As a customer, I want to be able to select an item from the menu so that I can add it to my order.

• Place order:

• • As a customer, I want to be able to pay for my order so that I can collect my order from the cafe.

• Cancel order:

• • As an Employee, I want to be able to view customers’ orders so that I can fulfill them

• Update order status:

Customer Account Subsystem

• • As a customer, I want to be able to modify my account, so that I can update it with relevant information

• Delete Account:

• • As a customer, I want to be able to add a payment method, so that I can pay for my order online.

• Remove Payment Method:

• • As a customer, I want to be able to cancel a subscription, so that I can stop being charged for orders I no longer want.

Notification Subsystem

• Send Promotions

• • The System will send out a notification about the order status to the customer, so that customers can be informed.

• Send Payment Confirmation

Menu Subsystem

• • As an Employee, I want to be able to create a new menu, so that customers can better access menu items for display

• Create Item:

• • As an Employee, I want to be able to modify menu items, so that I can update information, such as price.

• Remove Item:

Cardinalities & Multiplicities

Gantt Chart
