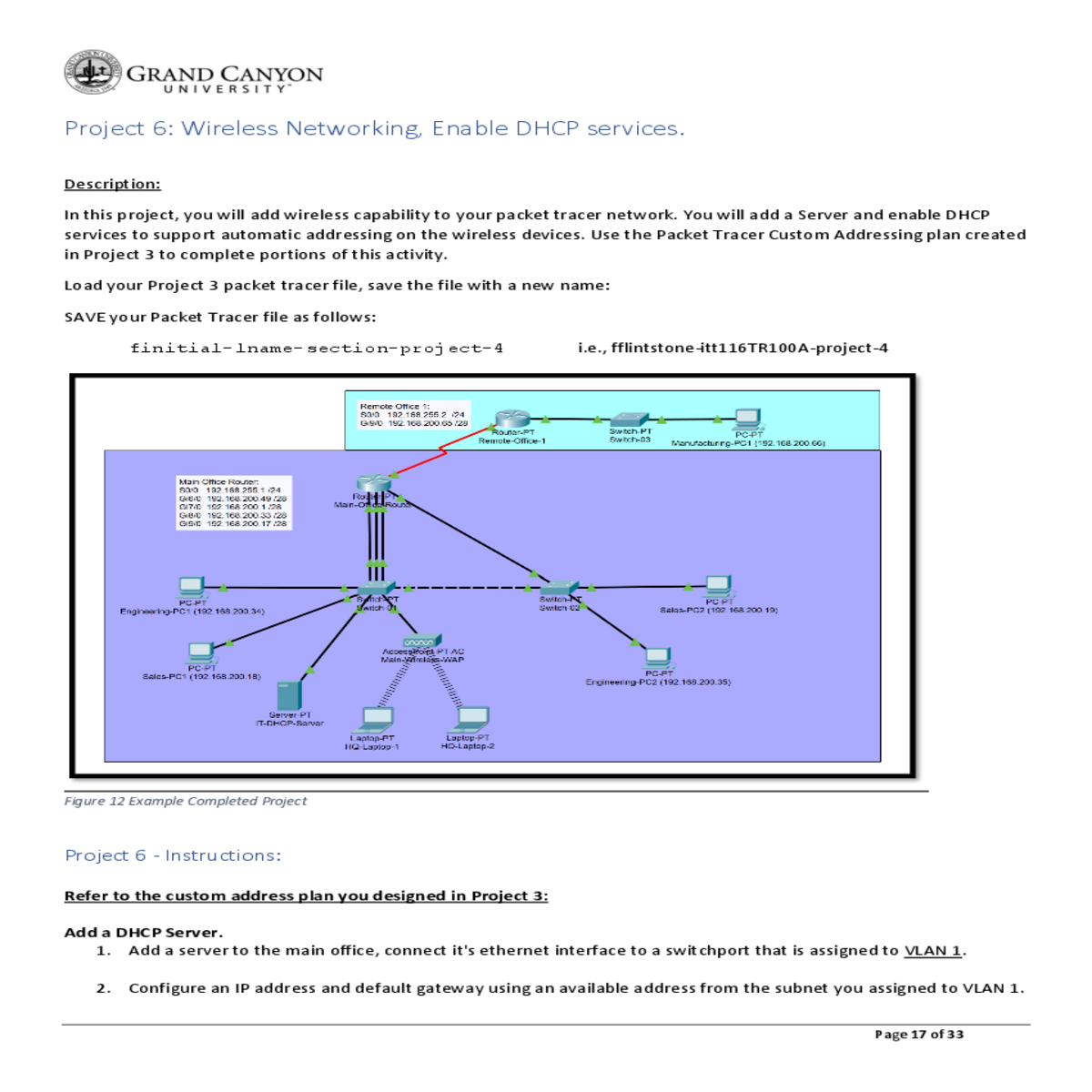

Project 6: Wireless Networking, Enable DHCP services.

Load your Project 3 packet tracer file, save the file with a new name:

SAVE your Packet Tracer file as follows:

Add a DHCP Server.

1.Add a server to the main office, connect it's ethernet interface to a switchport that is assigned to VLAN 1.

Configure default scope

3.Set ‘serverPool’ to provide DHCP addressing for VLAN1.

• SAVE the serverPool scope.

• Limit the DHCP range (Maximum Users) as needed to the number of addresses available in the subnet minus

1.

Page 18 of 33

• Place one in slot 3, one in slot 6, one in slot 7.

7.Add a new VLAN to the Switch-01.

9.Configure Gigabit 7/0 for VLAN 1.

• Apply an IP Address and mask for VLAN 1.

the main office (it's in VLAN 1…).

• In INTERFACE configuration mode.

Page 19 of 33

• Connect it to Switch-01 using a switchport that is assigned to VLAN 20.

• Set a Wireless SSID 'Main-WiFi'.

oInstall an 802.11AC compatible Wi-Fi adapter.

oRemember to power off the laptop to accomplish this task.

• Verify that each laptop receives an IP address from the DHCP pool assigned to your wireless subnet.

• Verify that each laptop is able to ping other devices on the network.
