There rotation the single domain with the reversed field
C | –Hc | R | B | Field removal or reversal | S |
|

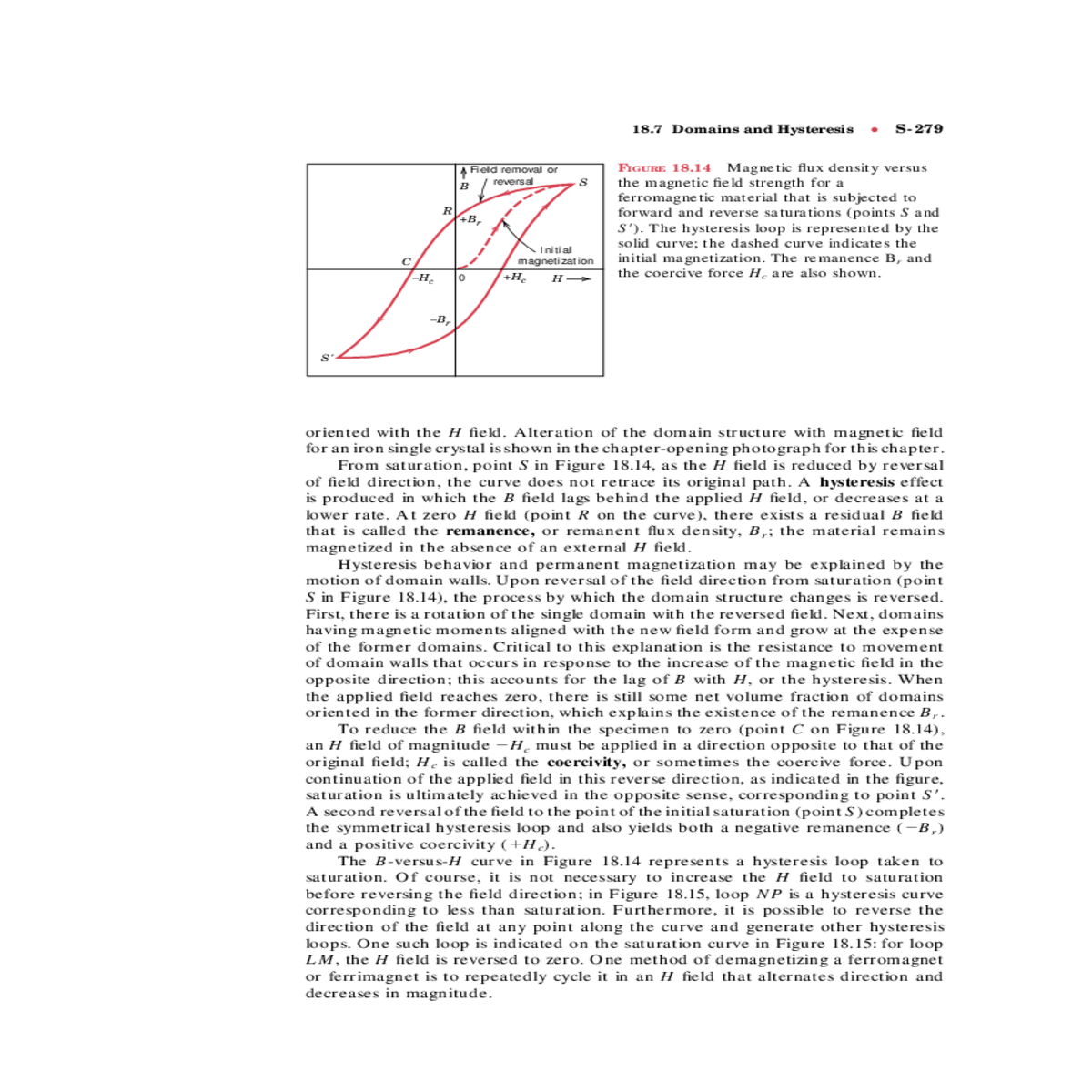

● | S-279 | |
---|---|---|---|---|---|---|---|---|---|
forward and reverse saturations (points S and | |||||||||
S�). The hysteresis loop is represented by the | |||||||||
|
|
||||||||
0 | +Hc |
oriented with the H field. Alteration of the domain structure with magnetic field for an iron single crystal is shown in the chapter-opening photograph for this chapter.
From saturation, point S in Figure 18.14, as the H field is reduced by reversal of field direction, the curve does not retrace its original path. A hysteresis effect is produced in which the B field lags behind the applied H field, or decreases at a lower rate. At zero H field (point R on the curve), there exists a residual B field that is called the remanence, or remanent flux density, Br; the material remains magnetized in the absence of an external H field.
|
● | Chapter 18 / Magnetic Properties |
|
L | |
---|---|---|---|---|---|
B | |||||
M | |||||
|
H
B |
|
|
---|---|---|
|
Soft
