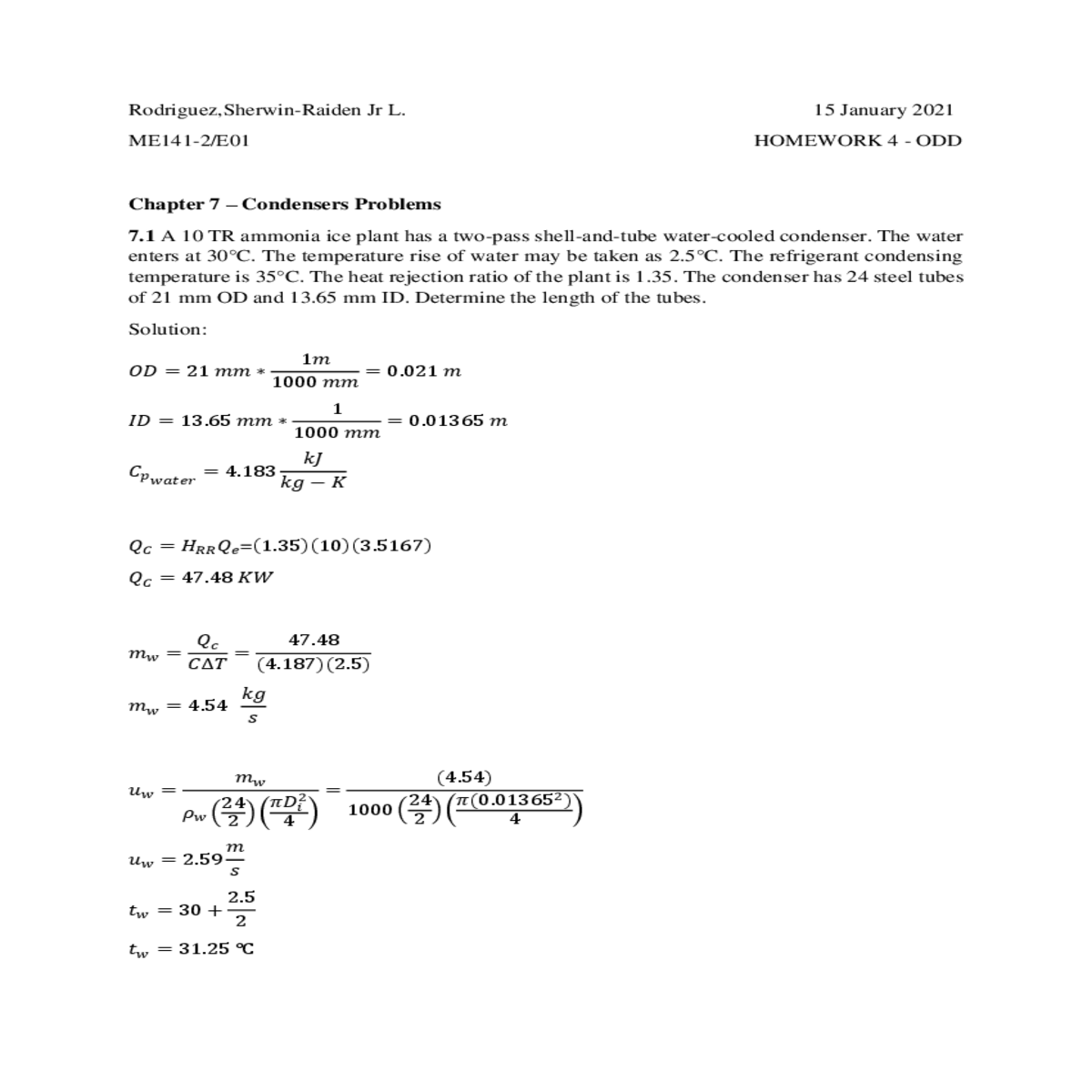

Rodriguez,Sherwin-Raiden Jr L. 15 January 2021 ME141-2/E01 HOMEWORK 4 - ODD
Chapter 7 – Condensers Problems
7.1 A 10 TR ammonia ice plant has a two-pass
shell-and-tube water-cooled condenser. The water enters at 30°C. The
temperature rise of water may be taken as 2.5°C. The refrigerant
condensing temperature is 35°C. The heat rejection ratio of the plant is
1.35. The condenser has 24 steel tubes of 21 mm OD and 13.65 mm ID.
Determine the length of the tubes.
1 |
|
|---|---|
𝑇𝑅 = 2°𝐶
Chapter 17 – Absorption Refrigeration Problems
17-1. What is the COP of an ideal heat-operated
refrigeration cycle that receives the energizing heat from a solar
collector at a temperature of 70°C, performs refrigeration at 15°C, and
rejects heat to atmosphere at a temperature of 35°C? Ans. 1.47
Given:
New solution:
When
ℎ4
