the sliding response phase use our collision syste

The sliding response phase use our collision system

this situation is the sphere unsuccessfully attempting to mount the step. Perhaps you would even see a small upwards movement before the sphere came back down again.

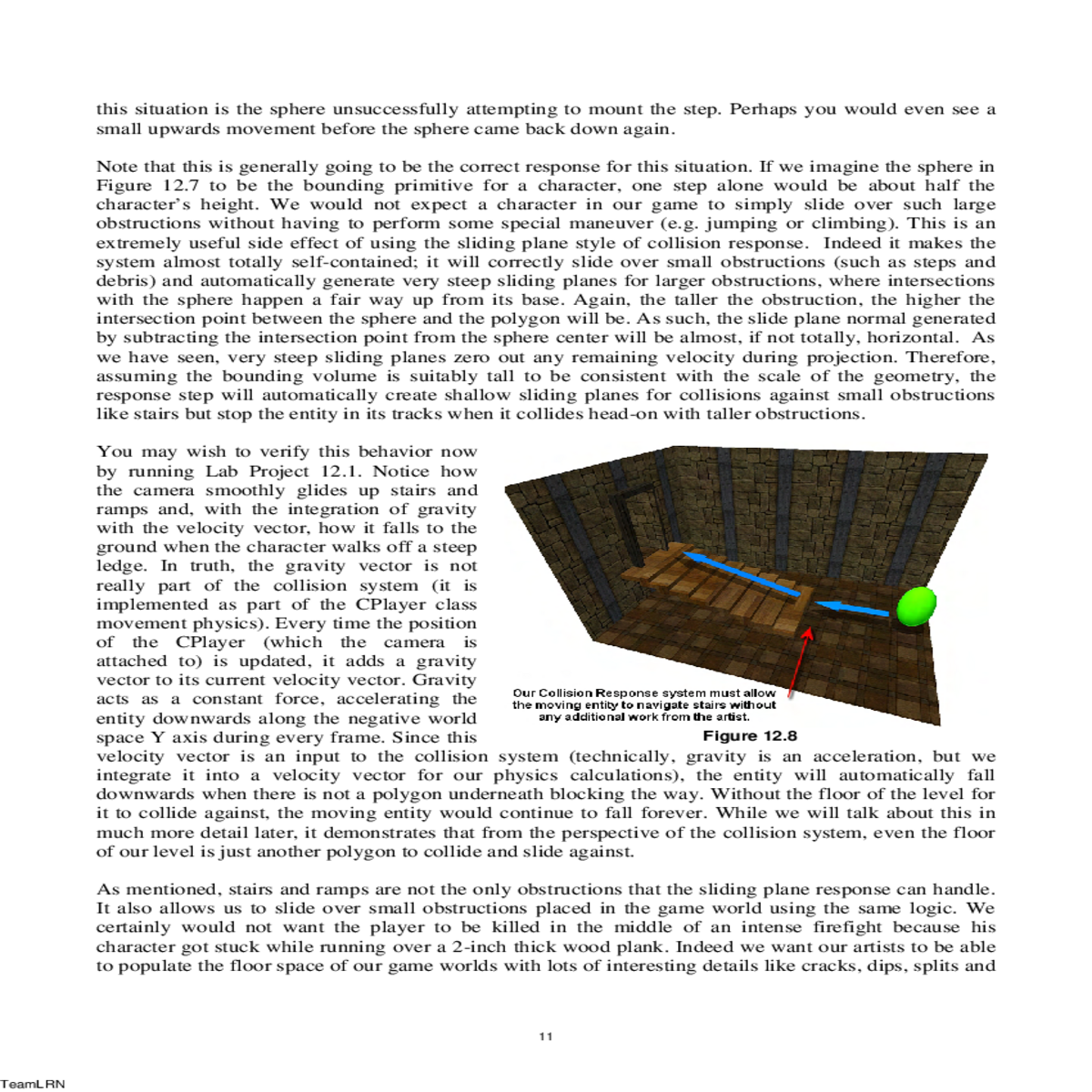

Note that this is generally going to be the correct response for this situation. If we imagine the sphere in Figure 12.7 to be the bounding primitive for a character, one step alone would be about half the character’s height. We would not expect a character in our game to simply slide over such large obstructions without having to perform some special maneuver (e.g. jumping or climbing). This is an extremely useful side effect of using the sliding plane style of collision response. Indeed it makes the system almost totally self-contained; it will correctly slide over small obstructions (such as steps and debris) and automatically generate very steep sliding planes for larger obstructions, where intersections with the sphere happen a fair way up from its base. Again, the taller the obstruction, the higher the intersection point between the sphere and the polygon will be. As such, the slide plane normal generated by subtracting the intersection point from the sphere center will be almost, if not totally, horizontal. As we have seen, very steep sliding planes zero out any remaining velocity during projection. Therefore, assuming the bounding volume is suitably tall to be consistent with the scale of the geometry, the response step will automatically create shallow sliding planes for collisions against small obstructions like stairs but stop the entity in its tracks when it collides head-on with taller obstructions.

velocity vector is an input to the collision system (technically, gravity is an acceleration, but we integrate it into a velocity vector for our physics calculations), the entity will automatically fall downwards when there is not a polygon underneath blocking the way. Without the floor of the level for it to collide against, the moving entity would continue to fall forever. While we will talk about this in much more detail later, it demonstrates that from the perspective of the collision system, even the floor of our level is just another polygon to collide and slide against.

As mentioned, stairs and ramps are not the only obstructions that the sliding plane response can handle. It also allows us to slide over small obstructions placed in the game world using the same logic. We certainly would not want the player to be killed in the middle of an intense firefight because his character got stuck while running over a 2-inch thick wood plank. Indeed we want our artists to be able to populate the floor space of our game worlds with lots of interesting details like cracks, dips, splits and

The sliding plane response concept will be familiar to gamers who enjoy titles in the first and third person game genres, but it is worth noting that this behavior is easily replaced or augmented according to application requirements. For example, you could replace the response system so that instead of projecting any remaining velocity, you calculate a reflection vector with respect to the collision plane. This would cause the objects to bounce off the polygons in the environment and might be a useful response system when implementing an outer space themed game. Alternatively, the response phase could be simplified so that the position returned from the first iteration of the detection phase of the collision system is used ‘as is’. This would mean that when objects collide with the environment, they stop moving. This would feel a little bit like navigating around a world where all polygons are coated with a strong adhesive. While not very useful in most games, it would at least provide a sense of physical presence to your polygons. The larger point here is that your response physics can be as simple or as complicated as you want them to be. As long as you maintain separate detection and response sub-systems, you can configure your results as needed.

In actual practice, the (sliding) response phase we use in our collision system, which features most of the behavior we have discussed so far, can be implemented using only a few lines of code. It involves nothing more than projecting (using a dot product) the remaining velocity vector onto the sliding plane returned from the detection phase and then re-calling the detection phase with new input parameters. Technically, there are a few additional tests we will do in the response phase to reduce certain artifacts. For example, a jittering effect can occur when forcing an entity into an area where two polygons form an internal corner. This jittering results from trying to solve multi-polygon collisions one at a time rather than simultaneously (which is much more computationally expensive). Fortunately, jittering artifacts can be mostly eliminated with another dot product. This will make sure that during any iteration, the
