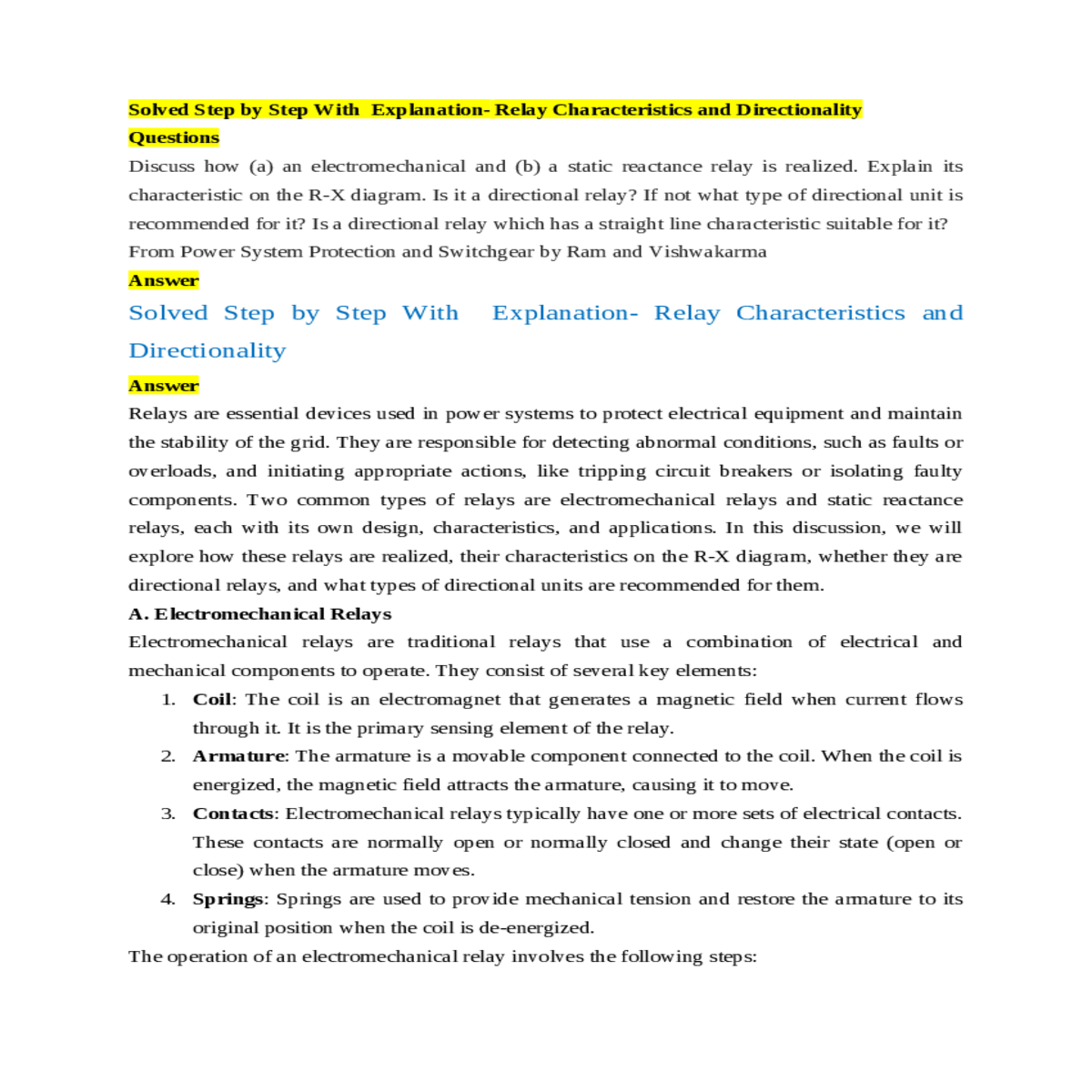

Solved Step by Step With Explanation- Relay Characteristics and Directionality

Questions

Answer

Relays are essential devices used in power systems to protect electrical equipment and maintain the stability of the grid. They are responsible for detecting abnormal conditions, such as faults or overloads, and initiating appropriate actions, like tripping circuit breakers or isolating faulty components. Two common types of relays are electromechanical relays and static reactance relays, each with its own design, characteristics, and applications. In this discussion, we will explore how these relays are realized, their characteristics on the R-X diagram, whether they are directional relays, and what types of directional units are recommended for them.

3. Contacts: Electromechanical relays typically have one or more sets of electrical contacts. These contacts are normally open or normally closed and change their state (open or close) when the armature moves.

4. Springs: Springs are used to provide mechanical tension and restore the armature to its original position when the coil is de-energized.

Characteristic on the R-X Diagram:

The R-X diagram, also known as the impedance or reactance diagram, is a graphical representation of the impedance seen by a relay at its location in the power system. Electromechanical relays typically operate based on the magnitude and phase angle of the voltage and current signals. Their characteristics on the R-X diagram are not linear and can be represented by curves.

• Polarizing Voltage: A polarizing voltage is derived from a reference voltage source. It is applied to the relay coil along with the current signal. The phase relationship between the polarizing voltage and the current signal helps determine the direction of fault currents.

• Polarizing Current: In some cases, a polarizing current is used instead of a polarizing voltage. The polarizing current is typically obtained from a current transformer and is applied in parallel with the current signal. The relay compares the phase of the current signal with the polarizing current to determine direction.

1. Sensors: Static reactance relays use sensors to measure the current and voltage in the power system. Current transformers (CTs) and voltage transformers (VTs) are commonly used for this purpose.

2. Microprocessor: A microprocessor or digital signal processor (DSP) processes the measurements from the sensors and implements the relay's protection algorithms.

• Directionality: Static reactance relays inherently provide directional protection because they consider the phase angle between voltage and current. By comparing the angle between voltage and current, the relay can determine the direction of fault currents. Therefore, they do not require a separate directional unit.

Recommended Directional Unit (Not Required):
