The inverting input negative terminal connected the input voltage vin

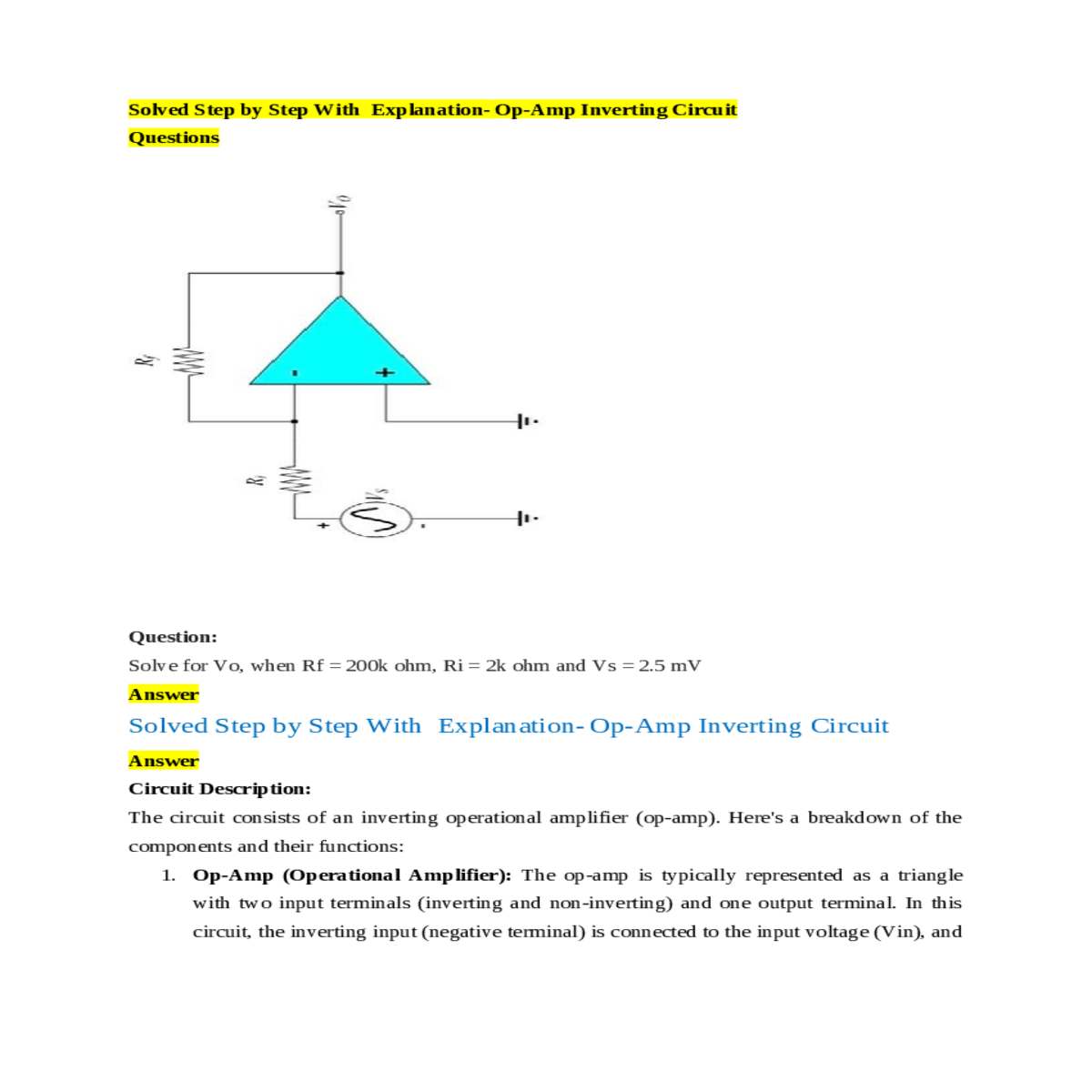

Solved Step by Step With Explanation- Op-Amp Inverting Circuit
Questions
Solved Step by Step With Explanation- Op-Amp Inverting Circuit
Answer
Input Voltage (Vin): This is the voltage you want to amplify or process. In your case, Vin = 2.5 mV (millivolts).
Output Voltage (V0): This is the voltage produced at the output terminal of the op-amp.
Rf = 200 kohms (kiloohms)
Ri = 2 kohms
V0 = - (200 kohms / 2 kohms) * 0.0025 V
V0 = - (100) * 0.0025 V
