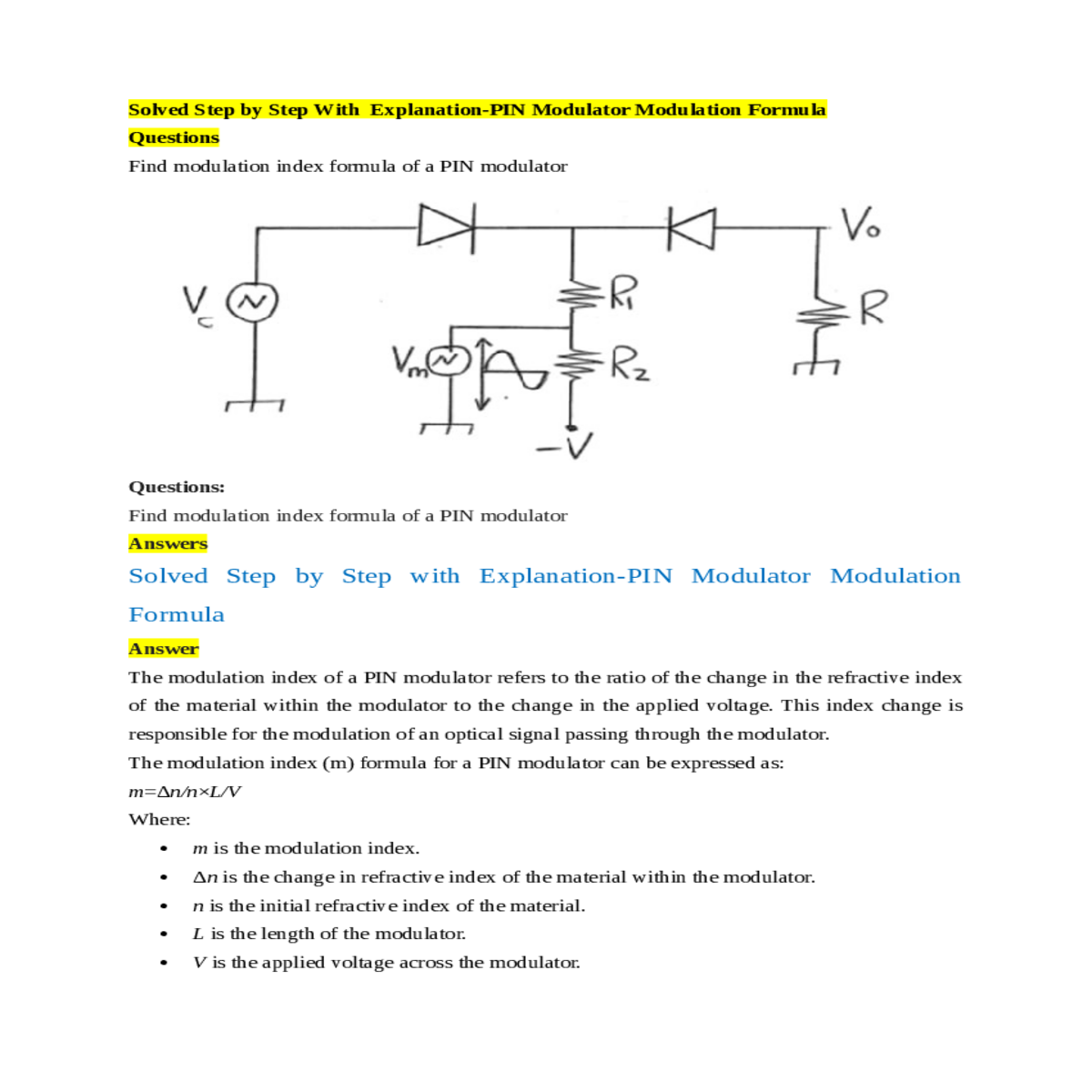

Solved Step by Step With Explanation-PIN Modulator Modulation Formula

Questions

Answers

Solved Step by Step with Explanation-PIN Modulator Modulation Formula

Where:

• m is the modulation index.

Explanation of each term:

1. Modulation Index (m): This term represents the degree of modulation achieved in the modulator. It tells us how much the refractive index of the material changes with respect to the applied voltage.

In essence, the formula indicates that the modulation index is a product of two factors: the fractional change in refractive index (nΔn​) and the length-voltage ratio (VL​). The change in refractive index causes a phase shift in the optical signal, and the length-voltage ratio affects the degree of this phase shift. A higher modulation index indicates a stronger modulation of the optical signal.

The formula provided here is a simplified representation and may vary depending on the specific characteristics of the modulator and the underlying physics involved. Additionally, the formula assumes linear modulation behavior, which might not hold in all cases.
