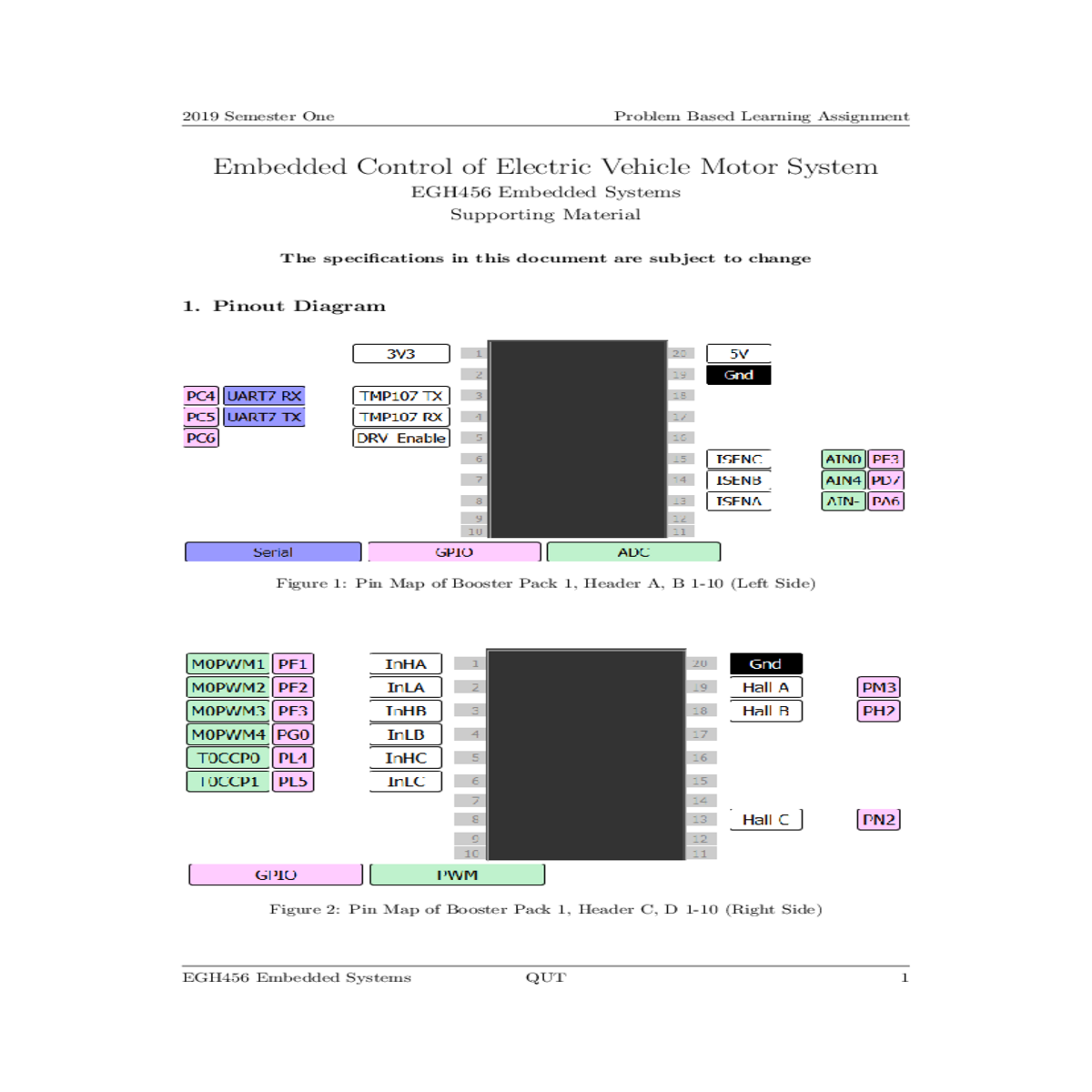

Embedded Control of Electric Vehicle Motor System EGH456 Embedded Systems
Supporting Material

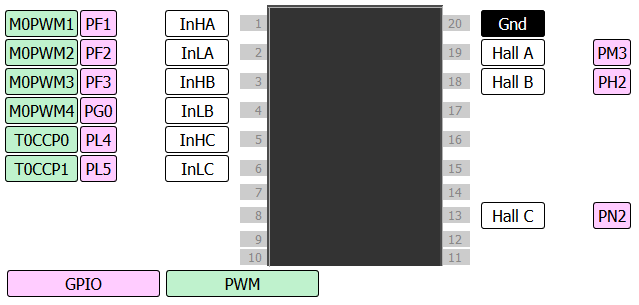

Figure 2: Pin Map of Booster Pack 1, Header C, D 1-10 (Right Side)

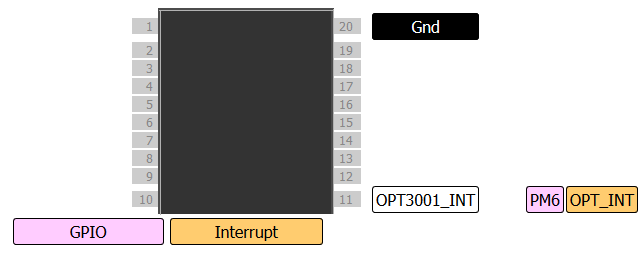

Figure 3: Pin Map of Booster Pack 2, Header A, B 1-10 (Left Side)

2. Devices Utilised

3. Motor State Diagram

4. Speed Control Diagram

6. Using TI-RTOS Drivers

The TI-RTOS drivers provide an added layer of abstraction over the TivaWare Peripheral Driver Library. While it is difficult to set up, it works extremely well for RTOS applications and makes peripherals easier to use. Therefore, it is highly recommended that you make

6.1 Initialisation

Before the TI-RTOS drivers can be used, various functions must be updated to complete the initialisation for the peripheral you wish to use. The initialisation function for the TI-RTOS drivers can be found in the EK_TM4C1294XL.c/h files. These files already initialise the basic peripherals used by the TI-RTOS examples and can be used as a reference on how to initialise other peripherals.

EK_TM4C1294XL_PWMCOUNT
} EK_TM4C1294XL_PWMName;

To even further simplify references to the PWM pins in your project, we can add definitions to Board.h:

#define Board_PWM3 #define Board_PWM4 #define Board_PWM5

Now we need to declare two arrays, one to hold information for the PWM pins, and another

to hold information for the CCP pins:

const PWMTimerTiva_HWAttrs pwmTimerTivaHWAttrs[2] = {

const PWM_Config PWM_config[] = {
{
.fxnTablePtr = &PWMTiva_fxnTable,
.object = &pwmTivaObjects[0],
.hwAttrs = &pwmTivaHWAttrs[0]
},
{
.fxnTablePtr = &PWMTiva_fxnTable,
.object = &pwmTivaObjects[1],
.hwAttrs = &pwmTivaHWAttrs[1]
},
{
.fxnTablePtr = &PWMTiva_fxnTable,
.object = &pwmTivaObjects[2],
.hwAttrs = &pwmTivaHWAttrs[2]
},
{
.fxnTablePtr = &PWMTiva_fxnTable,
.object = &pwmTivaObjects[3],
.hwAttrs = &pwmTivaHWAttrs[3]
},
{
.fxnTablePtr = &PWMTimerTiva_fxnTable, .object = &pwmTimerTivaObjects[0], .hwAttrs = &pwmTimerTivaHWAttrs[0] },
{
.fxnTablePtr = &PWMTimerTiva_fxnTable, .object = &pwmTimerTivaObjects[1], .hwAttrs = &pwmTimerTivaHWAttrs[1]

mode:

void EK_TM4C1294XL_initPWM(void)
{
/* Enable PWM peripherals */
SysCtlPeripheralEnable(SYSCTL_PERIPH_PWM0); SysCtlPeripheralEnable(SYSCTL_PERIPH_TIMER0);
