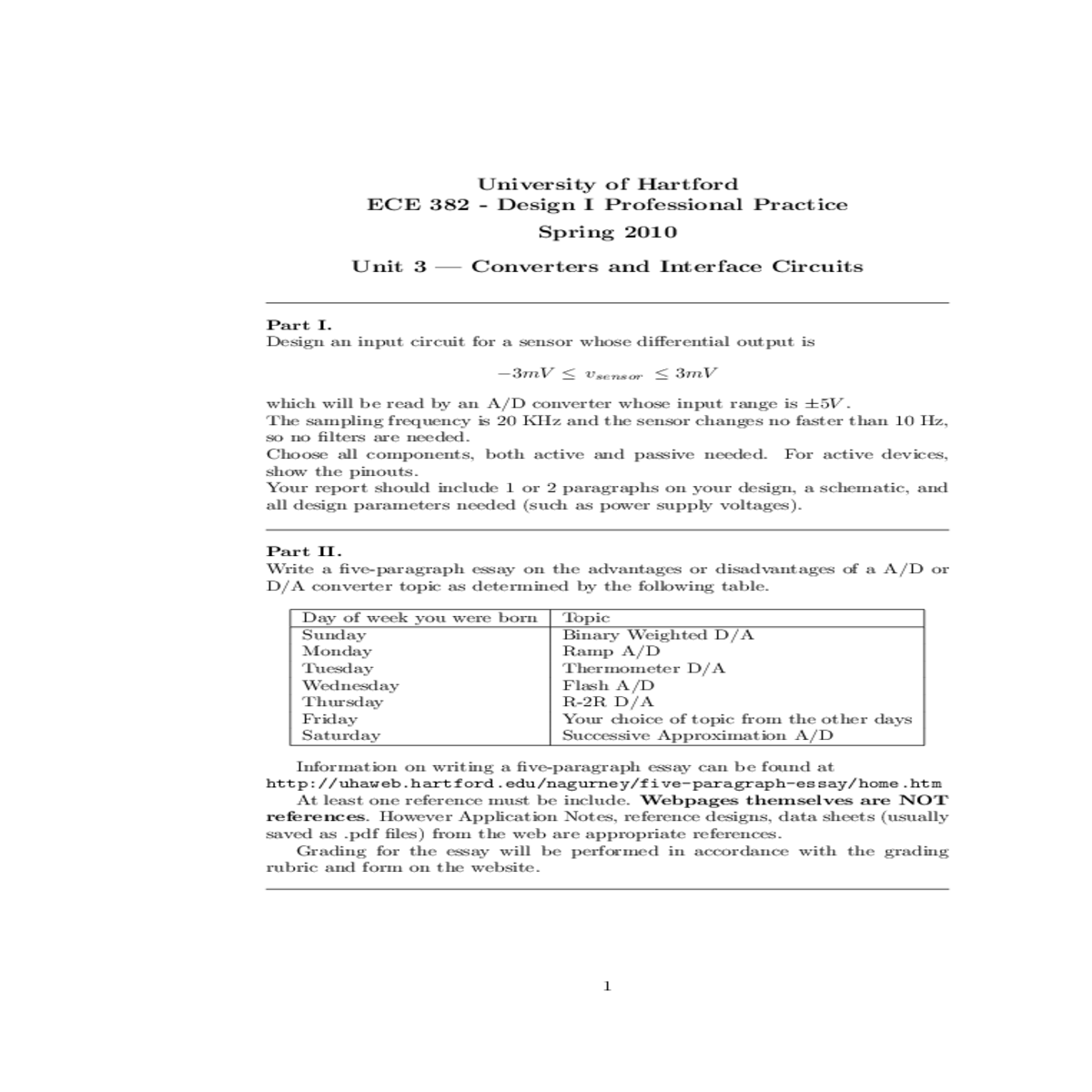

University of Hartford
ECE 382 - Design I Professional Practice
−3mV ≤ vsensor ≤ 3mV
which will be read by an A/D converter whose input range is ±5V . The sampling frequency is 20 KHz and the sensor changes no faster than 10 Hz, |
|
|---|---|
| Choose all components, both active and passive needed. | |
Part II.
Write a five-paragraph essay on the advantages or disadvantages of a A/D or D/A converter topic as determined by the following table.
http://uhaweb.hartford.edu/nagurney/five-paragraph-essay/home.htm At least one reference must be include. Webpages themselves are NOT references. However Application Notes, reference designs, data sheets (usually saved as .pdf files) from the web are appropriate references.
Grading for the essay will be performed in accordance with the grading rubric and form on the website.
