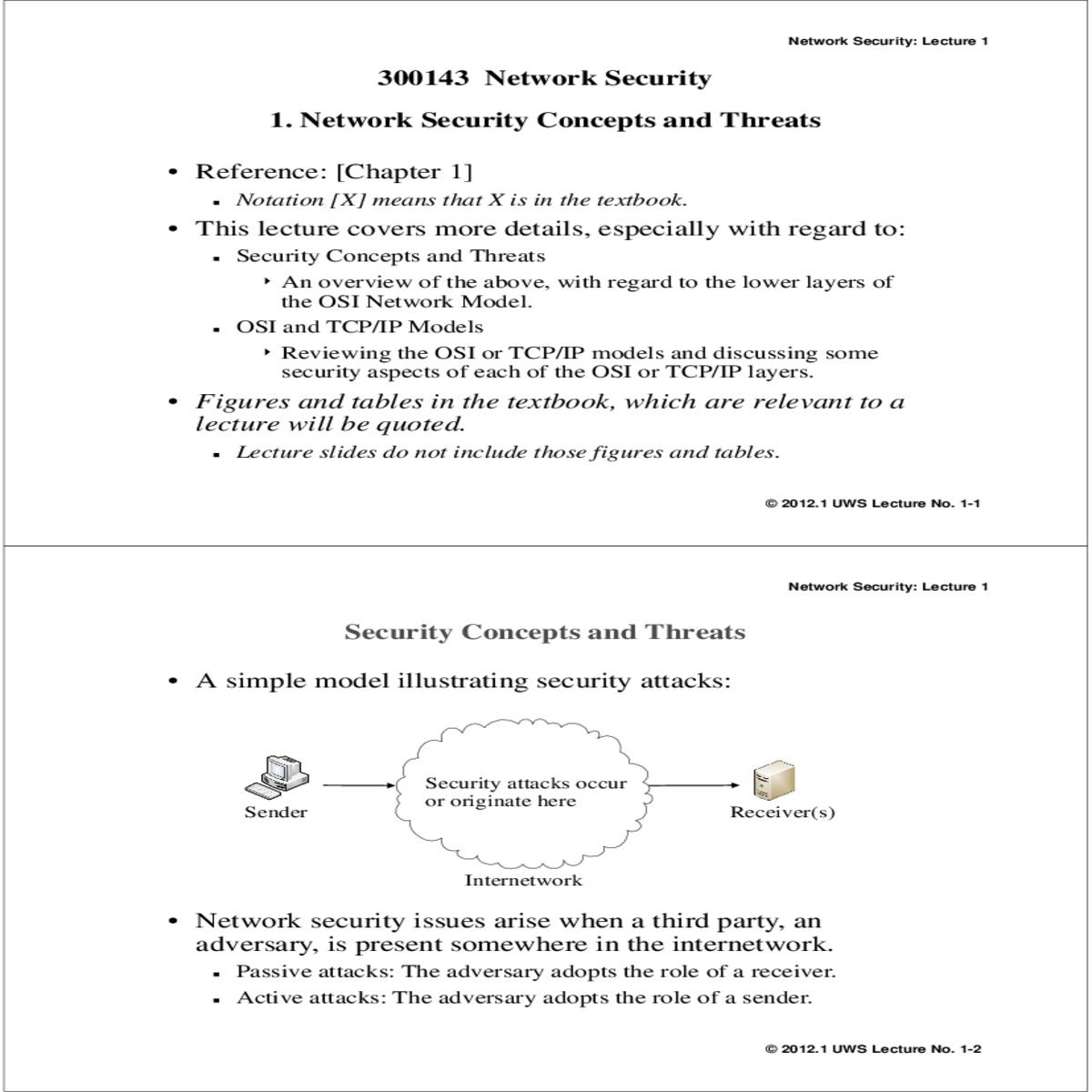

Network Security: Lecture 1

• This lecture covers more details, especially with regard to:  Security Concepts and Threats
 An overview of the above, with regard to the lower layers of the OSI Network Model.

 OSI and TCP/IP Models
 Reviewing the OSI or TCP/IP models and discussing some security aspects of each of the OSI or TCP/IP layers.

Security Concepts and Threats

• A simple model illustrating security attacks:

Sender

 Active attacks: The adversary adopts the role of a sender.

... Passive Attacks

• Passive attacks mainly involve observing or copying the information being transmitted between the two end entities.• A message being transmitted usually consists of two parts:  Message header
 Message body
• Two kinds of passive attacks depending on what
information contents are being observed:
 Unauthorized release of message contents usually from the message body
 Traffic analysis
 Observing information about the message, i.e.

Network Security: Lecture 1

Active Attacks …

Attacker

message M

• A spoofing attack may lead to modifying information stored on the target end entity

Message with false contents

... Active Attacks …

• Replay attack
 Makes use of a previously sent message from the sender

Bob	Attacker
	message n		message n
	message 1	...

• Modification attack:
 An attacker interrupts a message, modifies it, and sends the modified copy to the receiver.

 Modification attacks also include message stream modification, e.g.

• Denial of service (DoS) attack
 Sending bogus or craft messages to a receiver (which can be a computer or a network) to adversely affect its operation.

 May be classified as:
 Asymmetric
• The attacker uses little resource from himself/herself to perform a DoS attack on a larger or more powerful target.

Network Security: Lecture 1

Secure Communication Requirements ...

Alice

Are messages being
eavesdropped?

 This includes message stream integrity.

• Message (origin) authentication
 The link between the transmitted information and the sender’s identity needs to be verified. Also for non-repudiation purpose.

• The OSI model groups information, functions, and resourses into 7 layers or levels of abstraction.

Layer No.	Layer Name		Each layer communicates with its peer layer at the other end

 In theory. a security attack can occur in any of the layer.

• OSI layer structure is used in most of the discussions regarding different layers of networking

• In the following, some details of the lower 4 layers of the OSI model will be discussed and reviewed with regard to network security.

 Information at this level is represented in the form of electrical, optical or electromagnetic waves.

• Attacks at this level are usually passive in nature, e.g. wire- tapping and eavesdropping.

• Physical security and security at the OSI physical layer are

not parts of this unit.

• Information at this layer is encapsulated in frames.

• Frame format (Ethernet):

Header	Data


	• If privacy protection is used at this layer, that means the Data portion is encrypted, including the IP packet header and data.
• Source MAC address

• Passive attack is possible by changing the mode of a NIC to promiscuous mode to capture all the frames transmitted on the LAN.

• Privacy protection:

Router

	MAC Address	Attacker	Router’s ARP Cache is attacked, but it is not the real target
		Attacker

192.168.1.1 MAC_PC3

192.168.1.2 MAC_PC2

Network Security: Lecture 1

192.168.1.1 MAC_PC3

PC4’s ARP Cache

Network Security: Lecture 1

Network Layer …


	IP Payload

	contains upper layer protocol data unit (PDU) which is normally, but not necessarily, a TCP segment.
• Destination IP address

Network Security: Lecture 1

… Network Layer

 It establishes a communication session between the source and destination first before any data are sent.

Sent in one
message ACK-SYN
SYN

ACK

	SYN
	ACK

 Each computer needs to store the state of this process.

 At this point, the server
• stores the state of the half-open connection
• waits for the client to send the last ACK message
• If the client does not respond, then the server will drop the half-open connection after a time-out period.

Network Security: Lecture 1

… TCP SYN Flood Attack

Temporary storage for
half-open connections

 Passive attacks are side-effects and usually attackers (whether

human or malicious programs) are actively engaged in the attacks.

*** End ***
