Measuring the voltages using oscilloscope design the circuit and provide schematics

Solved Step by Step With Explanation-Analog Op-Amp Circuit Design

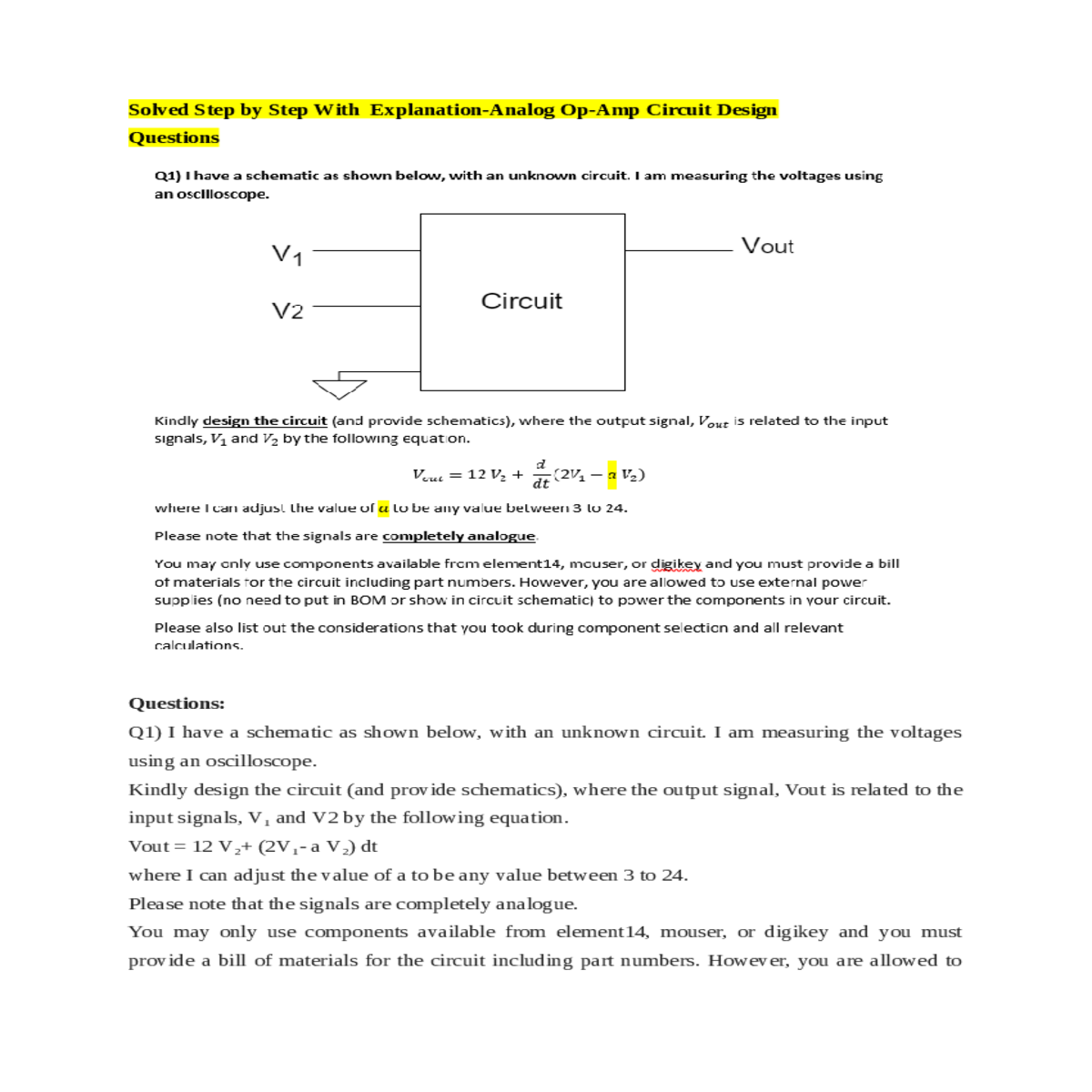

Questions

Vout = 12 V₂+ (2V₁- a V₂) dt

where I can adjust the value of a to be any value between 3 to 24.

Solved Step by Step with Explanation-Analog Op-Amp Circuit Design

Answer

|

R2

Differentiator Circuit:

V2 (2Vout) ----|---- R1 ---- Op-Amp (Inverting) ---- Vx

Step 3: Combining the Circuits for Final Output

Now, we need to sum the outputs from both the previous stages to obtain the final output.

V2 ----|-------+

|

2. Resistor Values: Resistor values determine gains and time constants in various stages. Adjusting these values carefully will help achieve the desired behavior.

3. Input Impedance: The op-amp's high input impedance ensures that the input signals do not load the circuit and distort the measurements.
