Flow over cylinder laminar and transient description mesh resolution

Arizona State University
MAE 560: Applied Computational Fluid Dynamics Fall 2022

Project 3
Report

Reynolds Number Calculation:
The values of density and dynamic viscosity were determined from the fluent database.

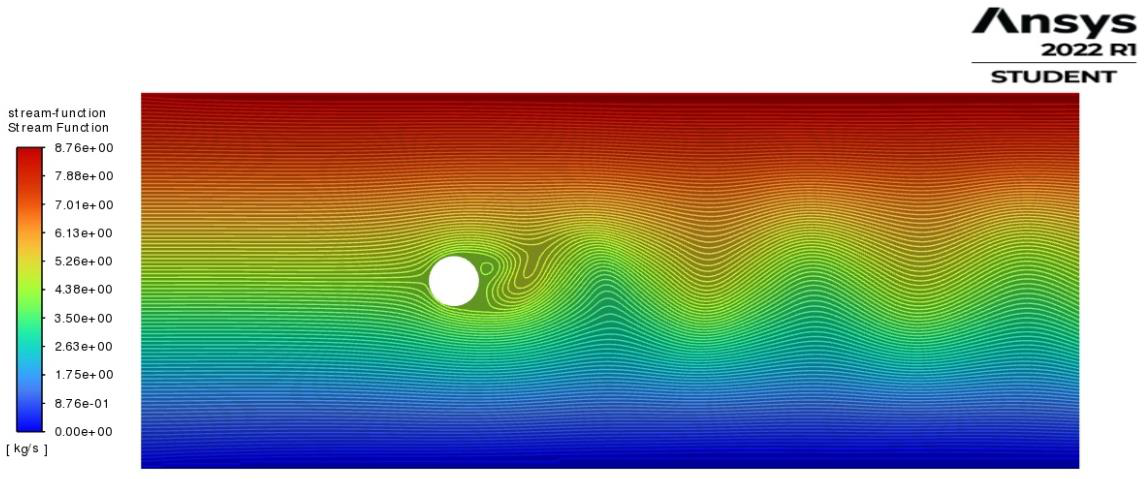

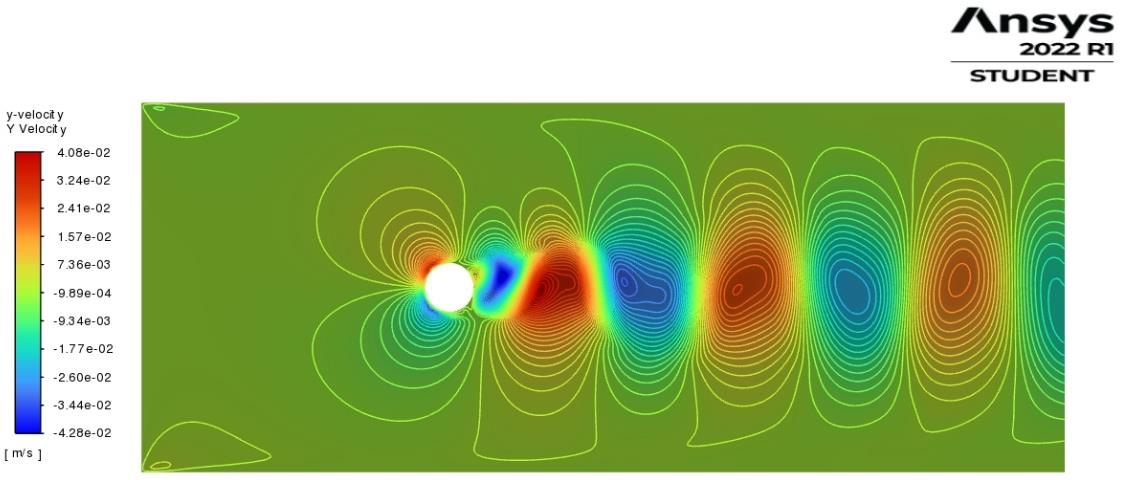

Figure 2: Streamline function at t = 1 min for Task 1

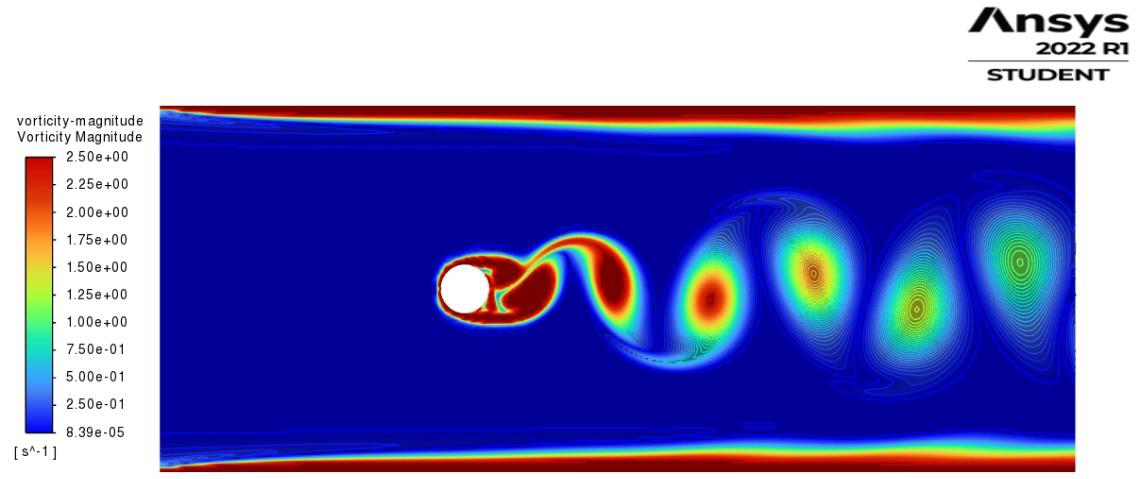

Figure 3: Vorticity Magnitude at t = 1min for Task 1

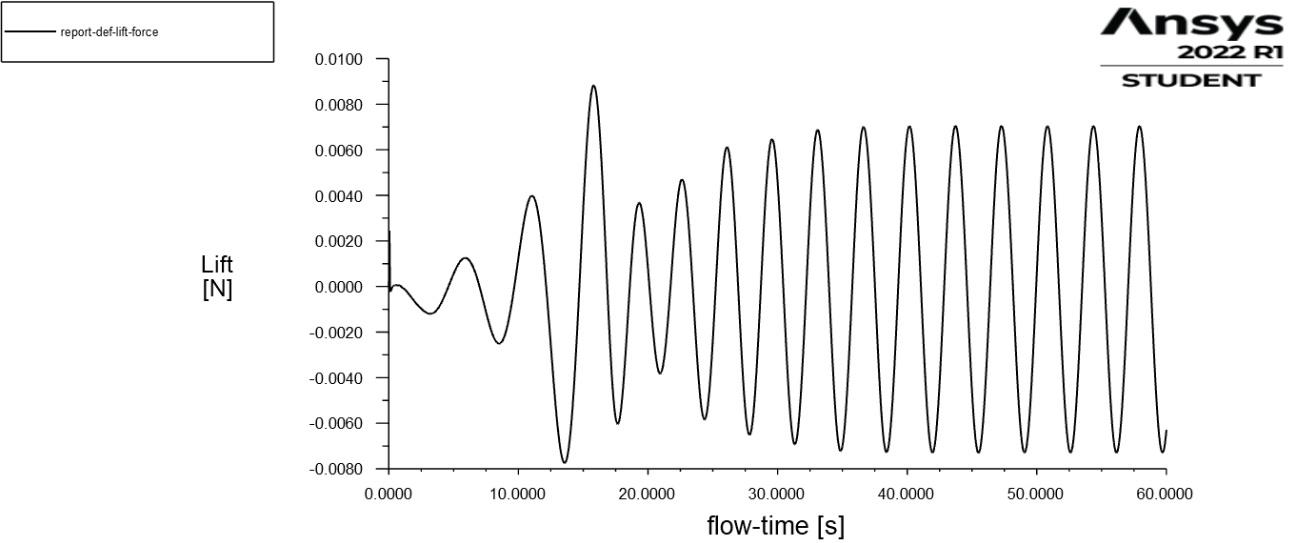

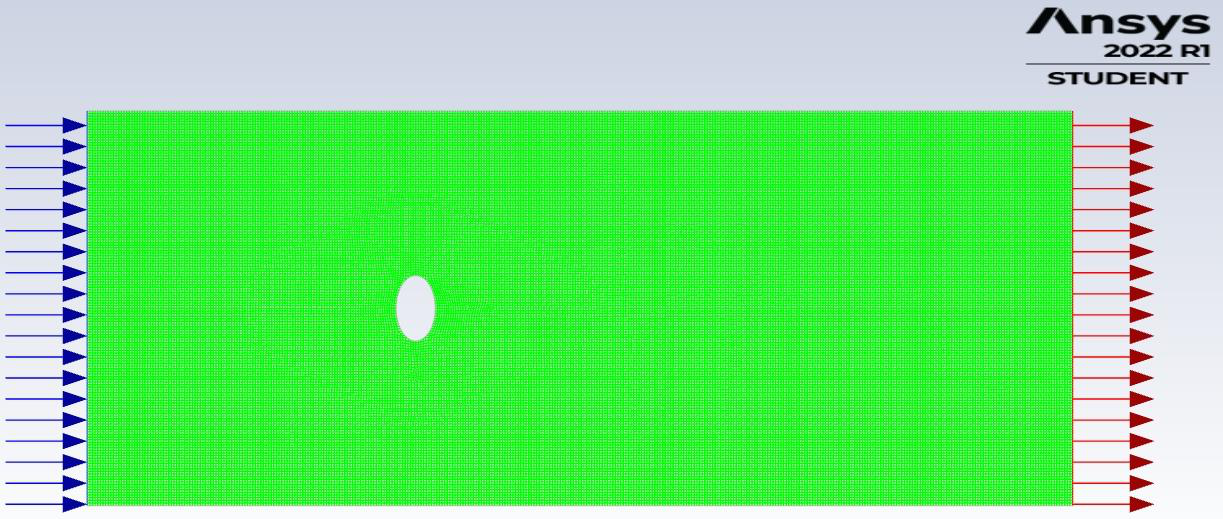

Figure 7:Lift Force v/s flow time plot from t=0 to t=1 min for Run 1 - Vertical Ellipse

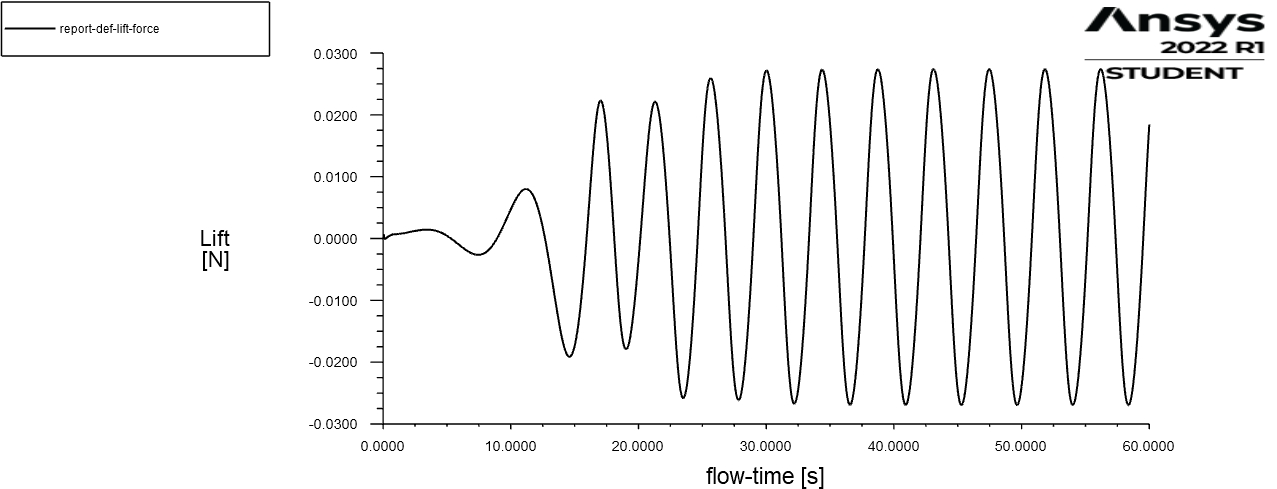

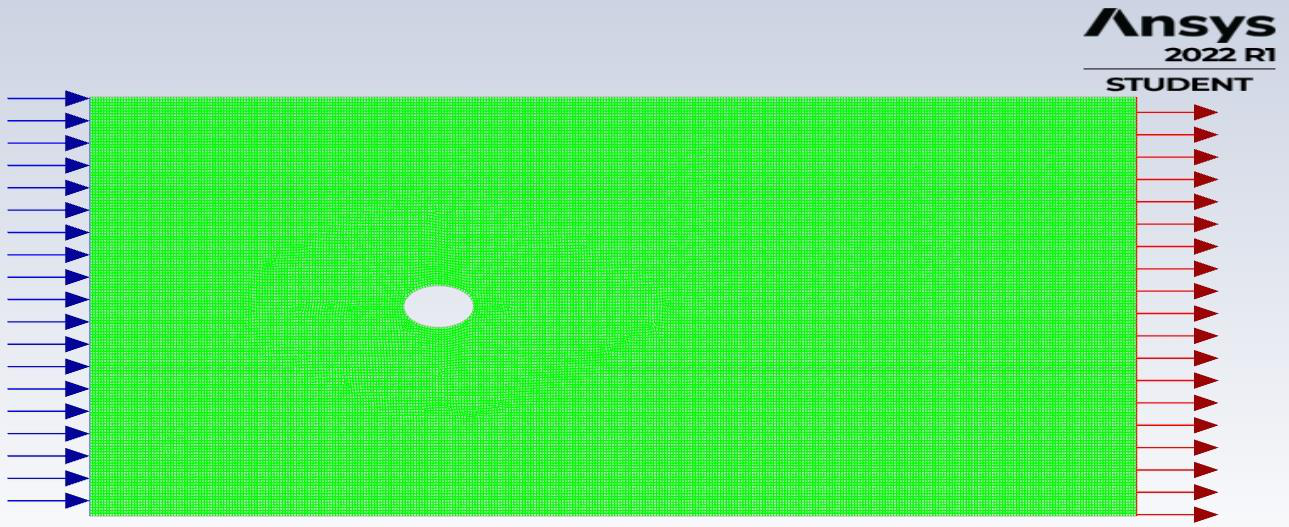

Figure 8: Lift Force v/s flow time plot from t=0 to t=1 min for Run 2 - Horizontal Ellipse

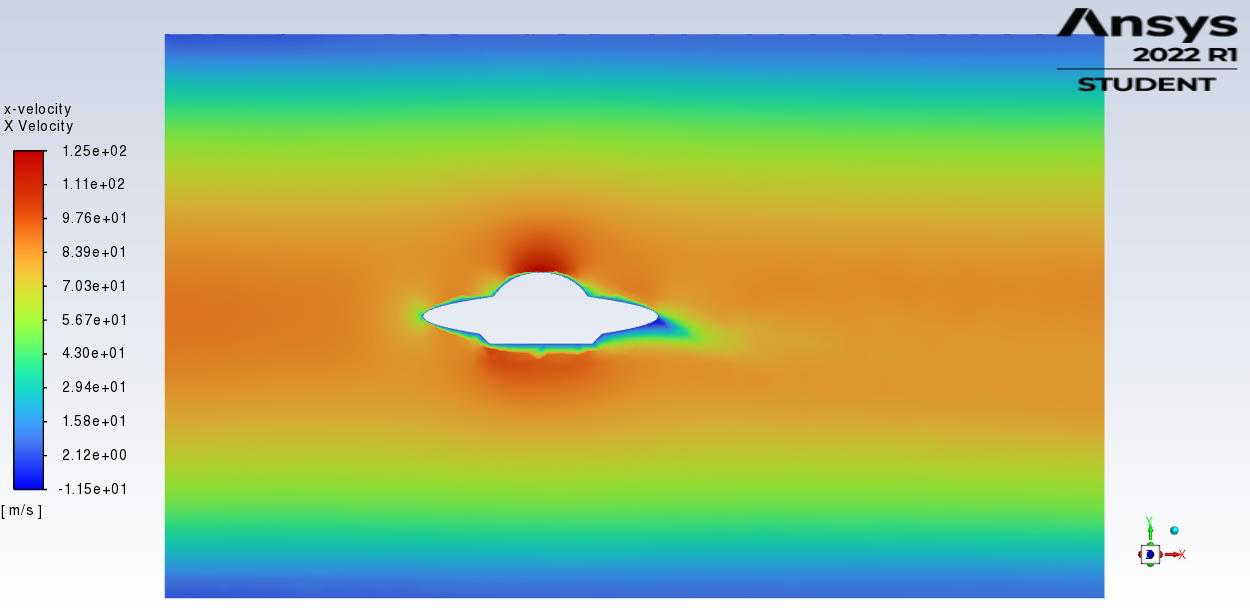

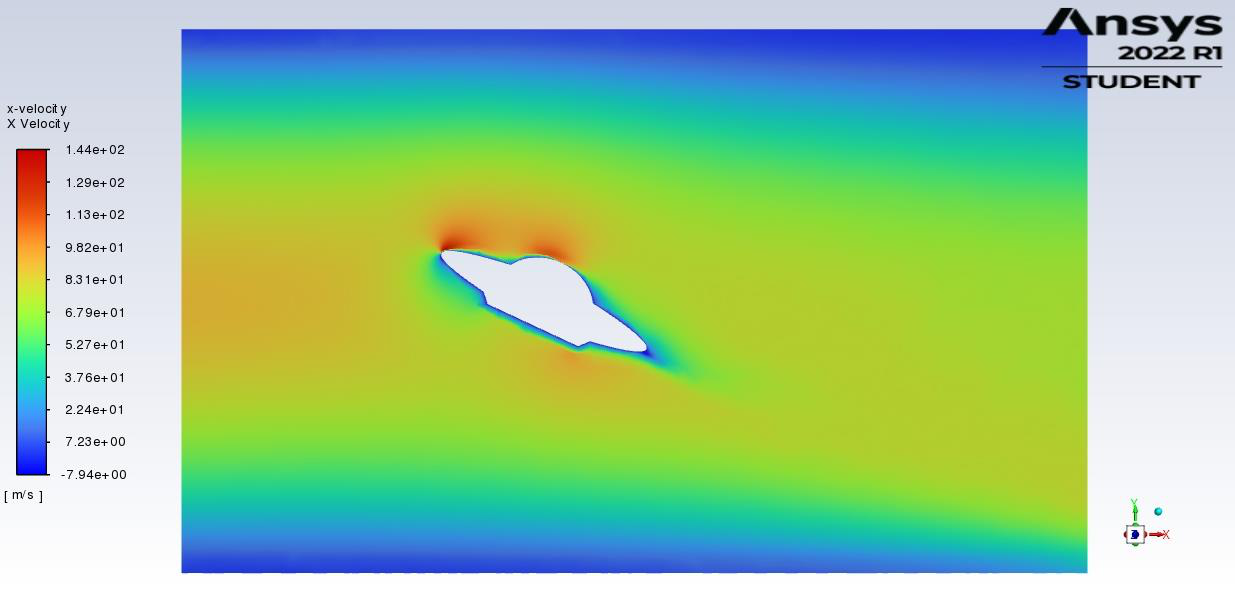

Figure 11: Contour plot of x-velocity at θ = 25o

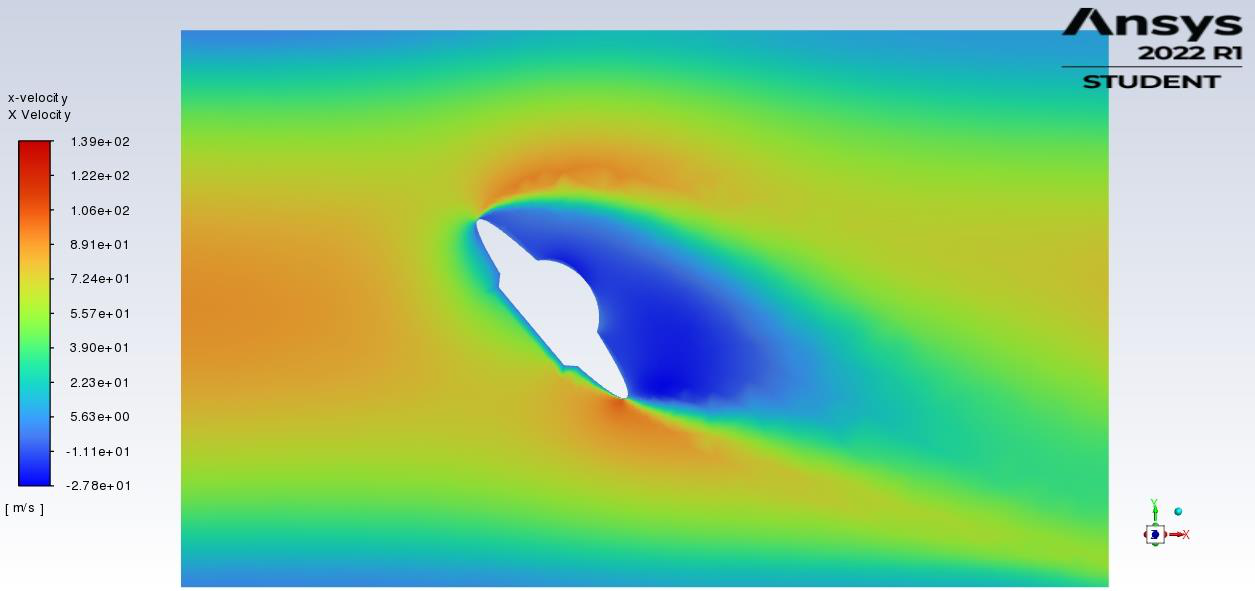

Figure 12: Contour plot of x-velocity at θ = 50o

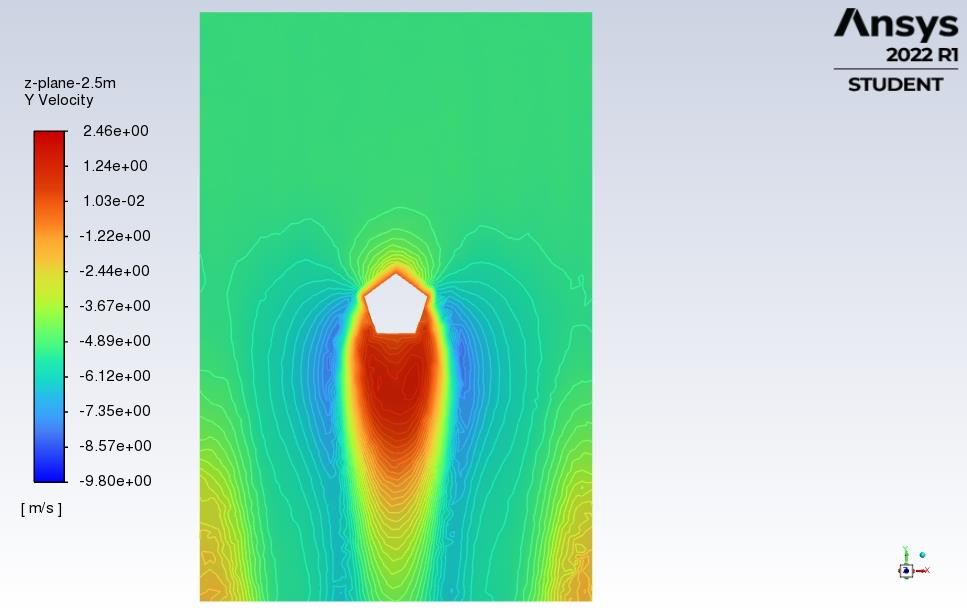

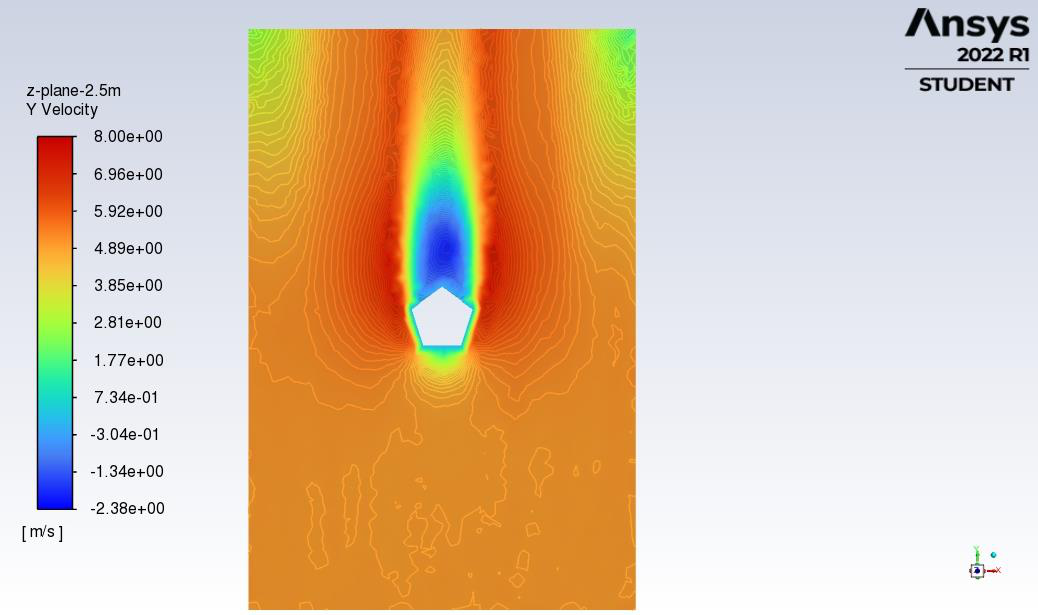

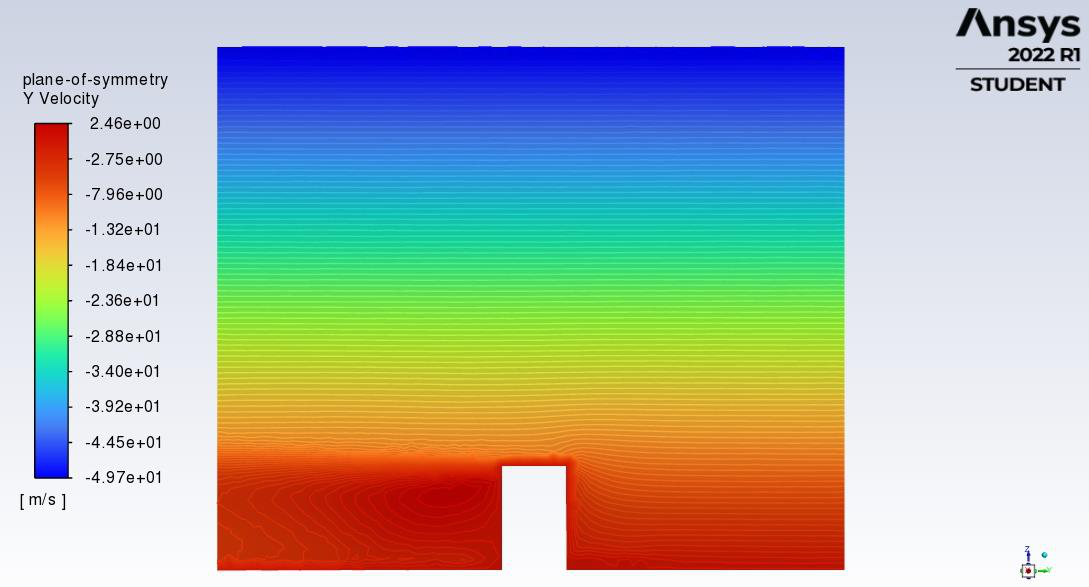

Figure 14: Contour plot of y-velocity along plane of symmetry for Task 3 (Run 1)

Description: From the above contours, it is observed that the wake formation (shadow region) has a velocity in the negative direction. Additionally, as we go above the pentagon building, the effect of building on the air flow (wind velocity) is reducing to a point that at the highest layers are practically at the same velocity i.e., ≈ 49.6 m/s.

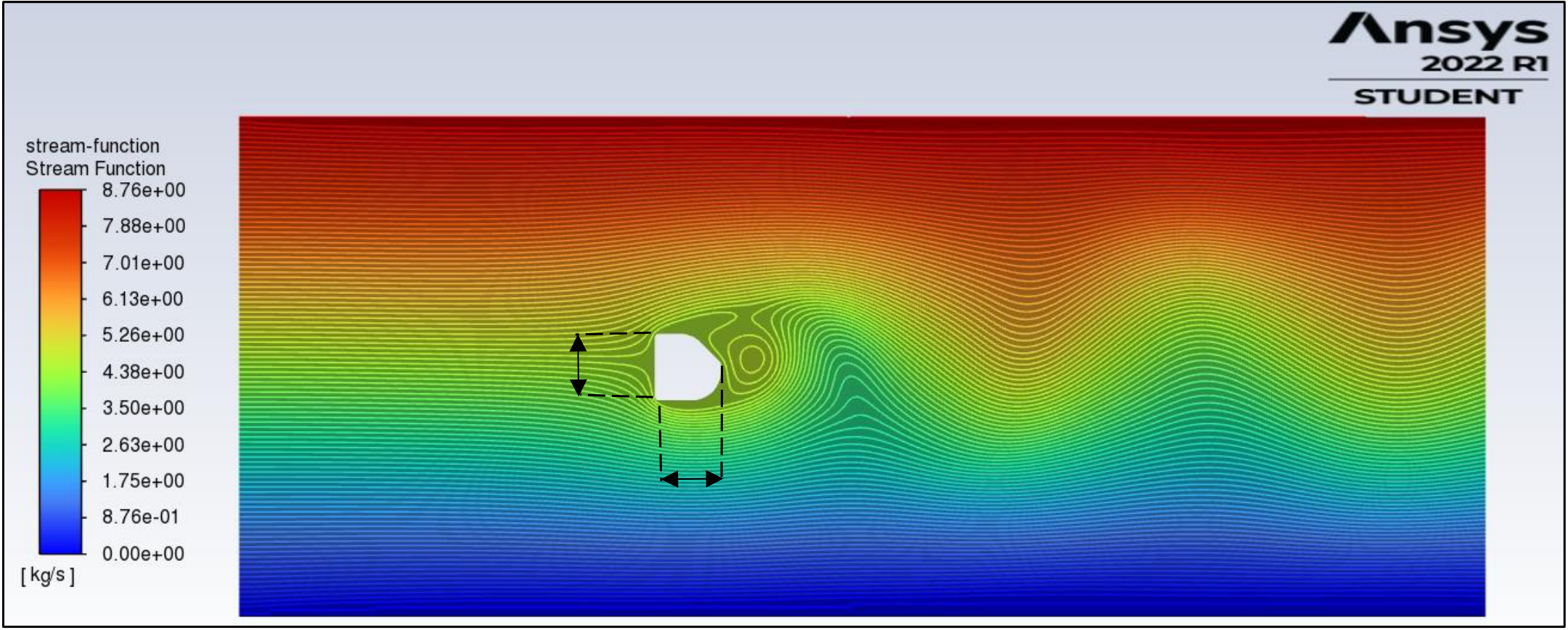

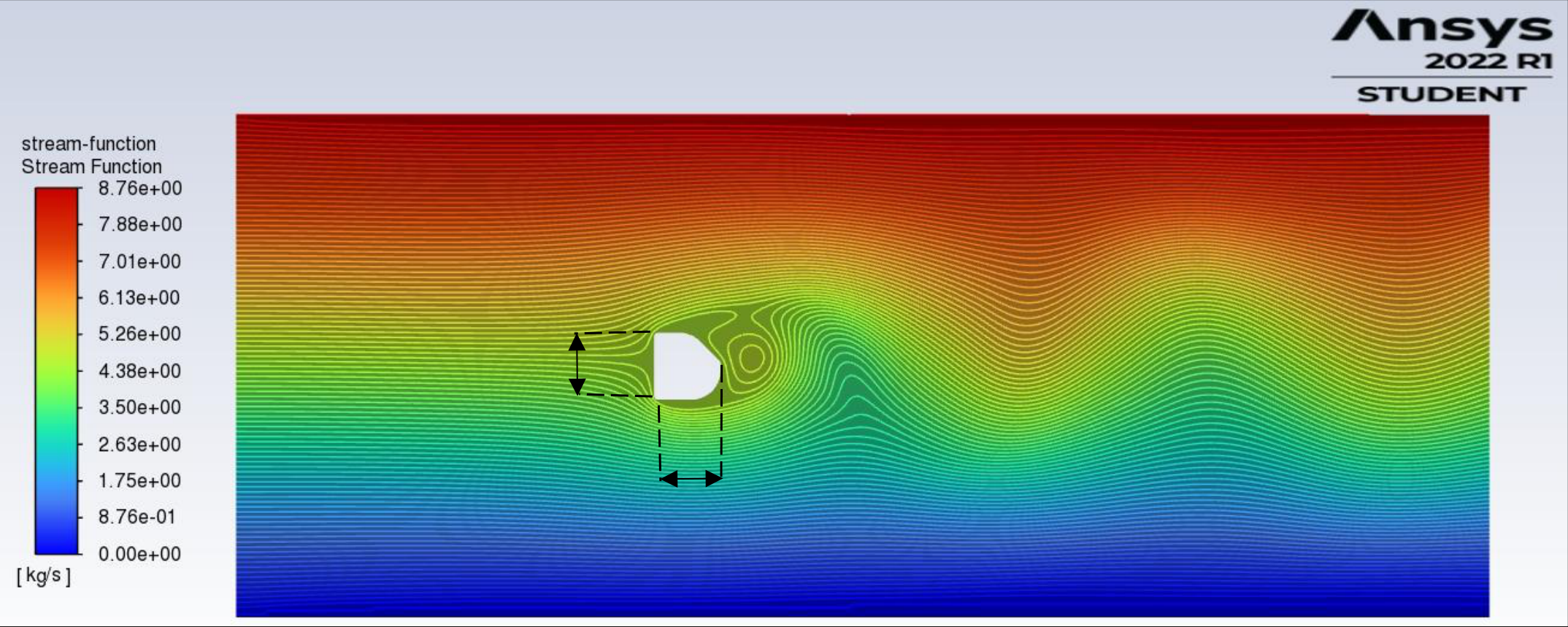

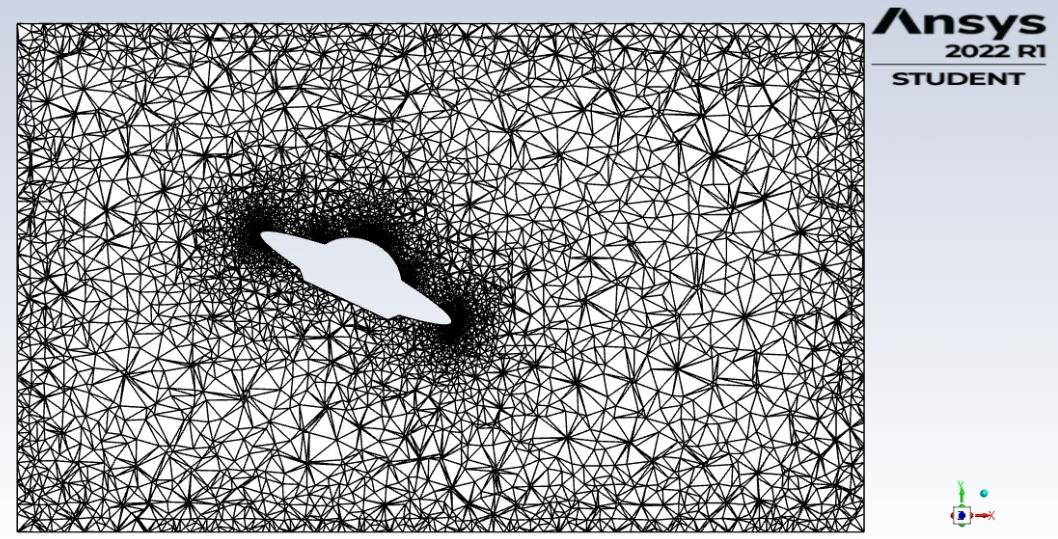

Task 4: Laminar flow over an asymmetric shape for 1 min D10: Contour plot of the stream function at t = 1 min

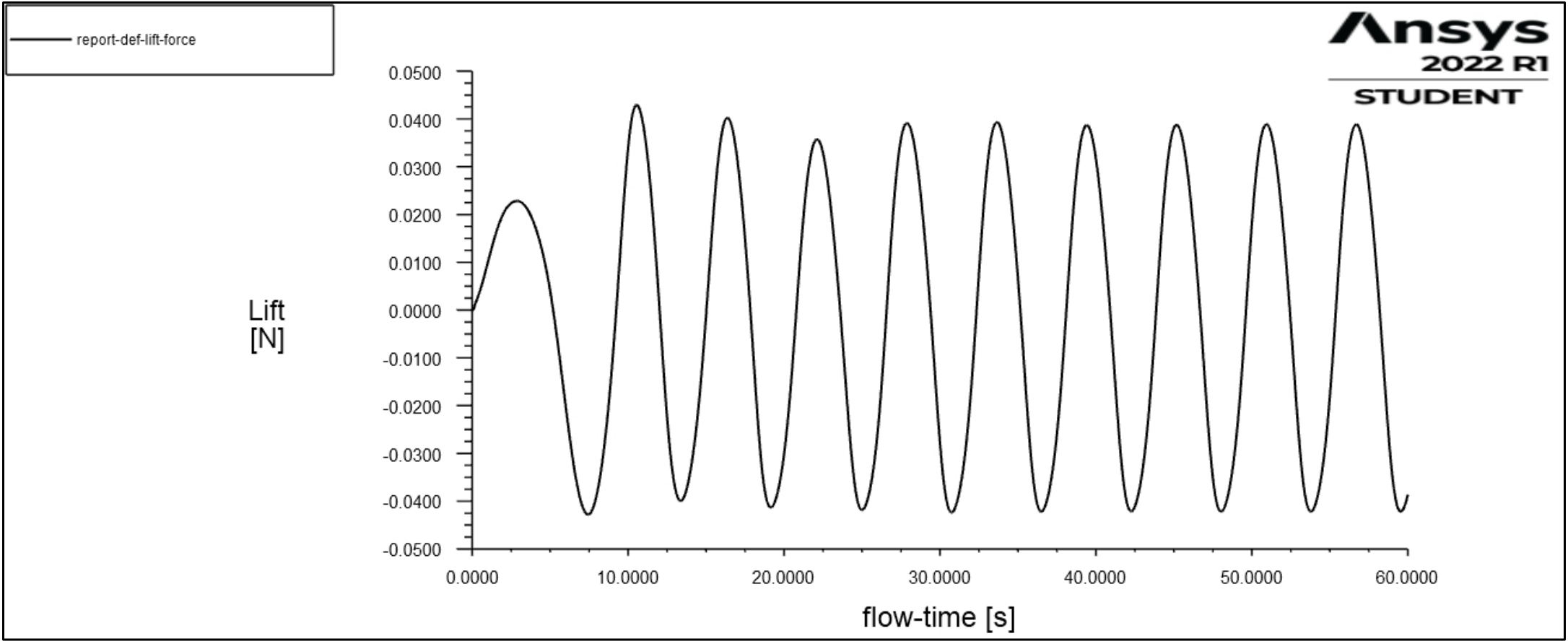

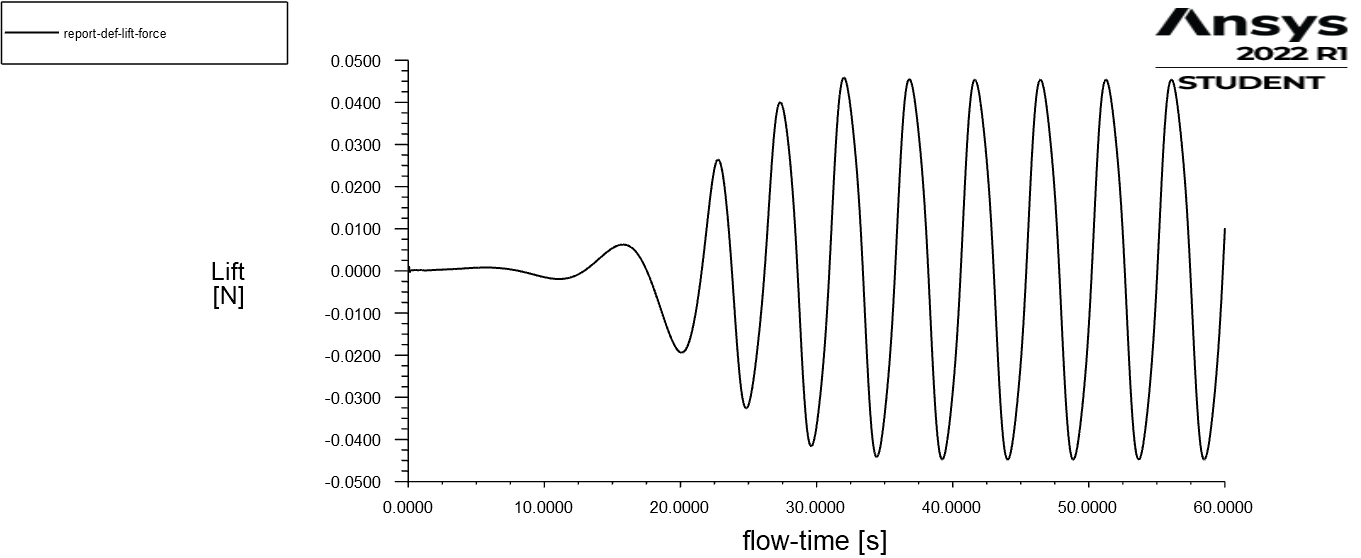

Figure 18: Plot of lift force v/s flow time for 1 min
