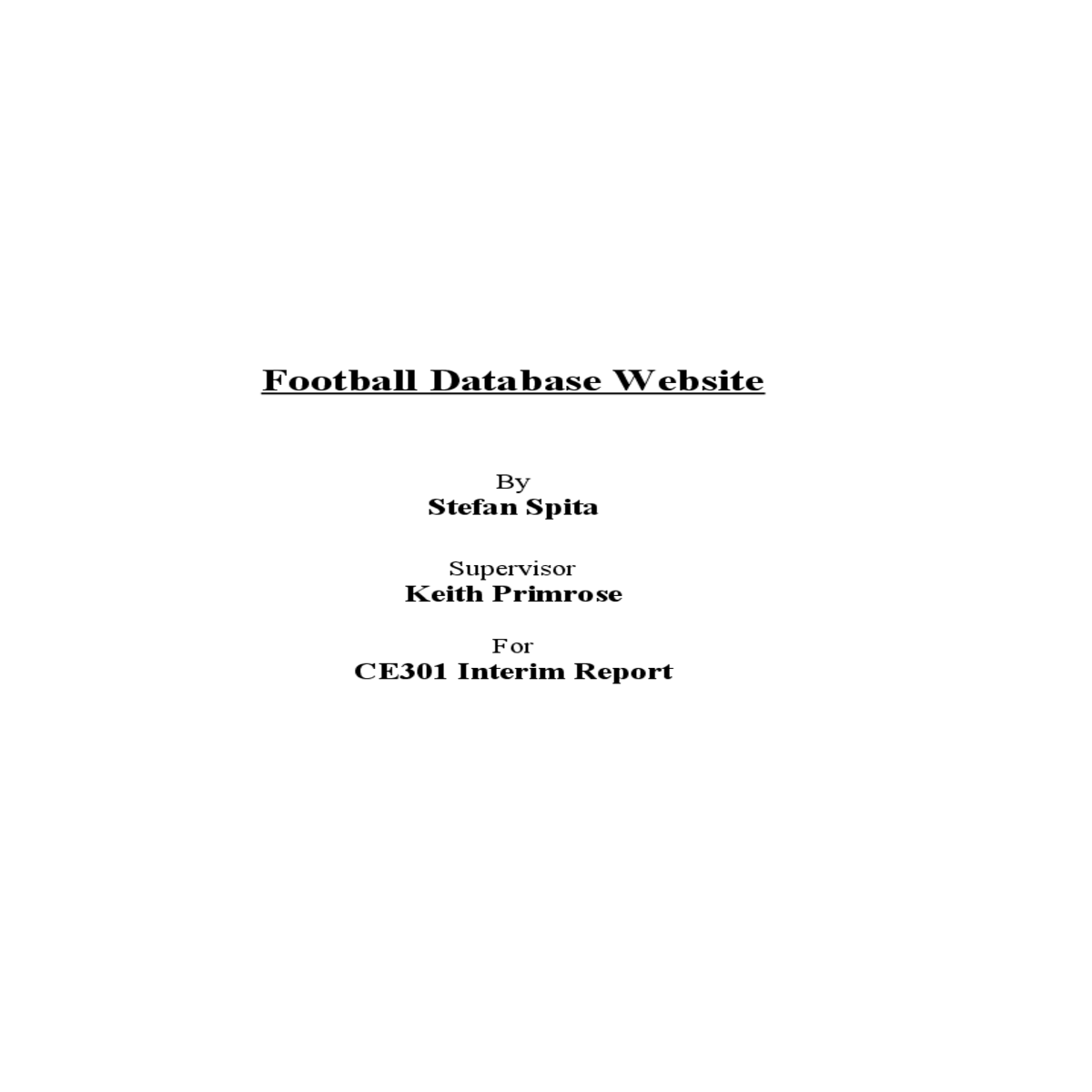

Football Database Website

CE301 Interim Report

Table of contents

2. Scope of the project…………………………………………………… 3
3. Glossary……………………………………………………………….. 3
1. System Requirements………………………………………………….. 7
  1. External Interface Requirements…………………………… 7
  2. 4. Submit bet use case………………………………... 8
    5. See bet results use case……………………………. 8
2. 3. User Interface Design……………………………………… 13
3. Methodology…………………………………………………………… 14
Conclusion…………………………………………………………………….. 16
Appendix……………………………………………………………………… 17

Figure 3 – Top Level Architectural Diagram……………………………………….10

Figure 4 – Entity Relationship Diagram……………………………………………12

The purpose of this report is to provide an overview of the project process towards the end of the autumn term. The information described is represented by the completed and future goals of the project, the revised GANTT, a review of the background reading used for expanding the knowledge over the technologies being used, the complete system requirements and system design specifications, the methodology being adopted, the objectives already achieved and the plan for continuing with the project over the next term.

Scope of the project

Term	Definition
Football	A game played on a rectangular field with net goals at either end in which two teams of 11 players each try to drive a ball into the other's goal by kicking, heading, or using any part of the body except the arms and hands. The goalie is the only player who may touch or move the ball with the arms or hands.
Fixtures	a day and usually a time agreed for a sports event
Virtual Money	An online currency created to reward of a game with some fictional amount of money
Football Statistics	Summarized data about several matches grouped together by a single purpose (e.g. Season, Competition, Period of time)
Goal	a point scored in some sports, such as football or hockey, when a player gets the ball into this area
World Cup	International Competition in which every nation is represented by a team and they all have the goal of winning the final round of the competition. It takes place every 4 years and is hosted by a different country which is chosen by an international forum.
Champions League	An international club competition organized for the best placed teams in every European national championship which takes place every year, starting in August and ending in May, next year.
Europa League	An international club competition organized for the best placed teams under the Champions League playing teams, or national cup winners. It takes place every year, starting in August and ending in May, the following year.
Bet	to risk money on the result of an event or a competition, such as a horse race, in the hope of winning more money
Match	a sports competition or event in which two people or teams compete against each other
Standings	reputation, rank or position in an area of activity, system or organization

References
1. http://www.footballdatabase.com/ Retrieved November 26, 2011

Romanian website which contains many kinds of statistics about the Romanian National league, its teams and its players. It was used to retrieve ideas about the various statistics that can be calculated using the database.

http://www.bet365.com/home/FlashGen4/WebConsoleApp.asp? Retrieved November 27, 2011

Software Requirements document outline from last year team project, used for creating a design document.

http://courses.essex.ac.uk/ce/ce319/Lectures/ce319w4b%202011-12.ppt, Iain Langdon and Sam Steel Retrieved October 30, 2011

Rented this book for further reading about the MVC engine is .NET Framework and learn new functionality

http://www.w3schools.com/sql/sql_constraints.asp, Retrieved November 13, 2011

One last secondary goal is the interaction between the user and the system. Most database-based websites are very static. They only rely on data request and visualization. The user shall be able to interact with the website in its own way, especially in a “match details” webpage, where the user should be able to rate the players and create notes about them. However, this kind of interactivity is considered a secondary goal and it will only be implemented if time allows it.

GANTT Chart

(Figure 1 – Project GANTT Chart)

Progress to date

On the right side panel of the website, a few places will be reserved for advertisements and Facebook links. The Facebook links will provide the user who has a Facebook account to post a comment about a webpage on his Facebook Wall.

Functional Requirements

Use case name	Details view
Trigger	User presses a player, team, competition, nation, user link
Precondition	The user has accessed the website and want to find more details about a specific resource
Basic Path	The website is accessed by the user The link for a player, team, competition, nation, user is pressed
Alternative Paths	These links are available all over the website in all webpages and in every panel
Post-condition	The requested page opens
Exception Paths	The user can press the browser back button to cancel its last access and go back to the previous page

Use case name	Search
Trigger	User presses on the search textbox at the top-left of every webpage
Precondition	The user wants to search for a particular item for faster access
Basic Path	3b. If some items match the text, a page showing the matching items is displayed The chosen item page is shown on the screen
Post-condition	The page shows the main page of the item found
Exception Paths	The user can press search again starting from the page he already accessed, or press the browser back button and start searching again

Use case name	Bet Results
Trigger	User logs into his account to see how much virtual money he won following the matches he betted on being played
Precondition	The user submitted some bet choices and the matches he betted on are finished
Basic Path
Alternative Paths	The user clicks on his login name in the user standings page
Post-condition	On the front page he can see his latest bet results, the virtual money he lost or won, the score and his overall rank
Exception Paths	The user can press his browser back button

The data flow diagram is shown below:

(Figure 3 – Top Level Architectural Diagram)

PlayerMatch table
Data item	Type	Restrictions	Keys
PlayerID	bigint	not null	PK, FK references ID in Player
MatchID	bigint	not null	PK, FK references ID in Match
TeamID	int	not null	FK references ID in Team
Event	enum	not null, {lineup, goal, penalty, assist, yell, red, subin,subout}
Minute	smallint	interval 1-120, >120 for penalty shootout	PK
PositionID	int	not null	FK references ID in Position

MatchBet table
Data item	Type	Restrictions	Keys
UserID	int	not null	PK, FK references ID in User
MatchID	bigint	not null	PK, FK references ID in Match
ScoreHost	tinyint
ScoreVisitor	tinyint
1X2	enum	{1, X, 2}

The entity relationship diagram presented in the following figure describes the relationship between the tables presented above:

(Figure 4 – Entity Relationship Diagram)

- Home
- Matches
- - Transfers
- Teams
- - Search
  - Compare
- Game
- Feedback
- Facebook link to the football database page on Facebook
- Game Advertisement

- Any number of credits can be played for a bet
- For getting a wrong result the credits are lost
- - Getting an event right for a player in a match bet: 4 times the bet
  - Getting event right for a player in a half match time: 8 times the bet

The framework chosen for this project is the AGILE methodology, because it better reflects the real-life scenarios applied for software development in the present time, by most companies in this industry. The SCRUM methodology is used, having a SCRUM delivery time of two weeks.

The final delivery is tested during the last 3 days of the two week SCRUM period. If planned developments remain unfinished after a two week period, they are being added to the plan for the next SCRUM period, without any other tasks being delayed. However, if a second consecutive delay occurs, the whole project plan is being updated to include the delay.

Longer period objectives were completed after the Initial Report and are described in the sections above: System Requirements, containing use cases and the data flow diagram for database, and the System design which includes the entire table specification for the database and the data contained in the Website master page and in the individual webpages.

Also, the requirements and the design was discussed and agreed with my project supervisor during the weekly meetings after the respective reports were completed.

Sample data will be created over the next week, so the constraints and the triggers can be verified for errors. Since complicated triggers were implemented, which update entire tables at once, they have to be thoroughly tested for errors, so the data can be confirmed to be accurate.

The last part of the autumn term will be used to create the webpages that are using the stored procedures explained in the first paragraph. These webpages will only contain some sample data so the general layout of all the webpages can be created and tested.

Conclusion

After concluding the meetings with my supervisor, I am certain my project is heading in the right direction. The requirements and the design documents will be more detailed before each phase of the project, as described in previous chapters. Also, testing and fixing shall be taken seriously after each completed phase of the website, as I am aware quality assurance is of high importance in software development.

Player table
Data item	Type		Restrictions	Keys
ID	bigint		unique, not null, auto-increment	PK
FirstName	varchar(20)		not null
LastName	varchar(20)		not null
NationID	int		not null	FK references ID in Nation
ClubID	int			FK references ID in Team
Height	decimal(3, 2)
Weight	smallint
BirthCity	varchar(20)
BirthDate	date		not null
Age	tinyint		Current date-Birth date, not null
Retired	bit		not null, 1 or 0
StaffID	smallint		not null, default: 0	FK references ID in Position
Team table
Data item	Type	Restrictions		Keys
ID	int	unique, not null, auto-increment		PK
Name	varchar(20)	not null
NationID	int	not null		FK references ID in Nation
Type	bit	not null, 1 or 0
City	varchar(20)
StadiumID	int			FK references ID in Stadium
ParentTeam	int			FK references ID in Team
Points	int	calculated from Match table
MonthPointChane	int	calculated from Match table
YearPointChange	int	calculated from Match table
CompetitionID	int			FK references ID in Competition

Transfer table
Data item	Type	Restrictions	Keys
PlayerID	bigint	not null	FK references ID in Player
TeamFrom	int	not null	FK references ID in Team
TeamTo	int	not null, last transfer equal to player.teamID	FK references ID in Team
Date	date	not null
Amount	int	default: 0

Season table
Data item	Type	Restrictions	Keys
ID	int	unique, not null, auto-increment	PK
DateStart	year(4)	not null
current	bit	1 or 0

Position table
Data item	Type	Restrictions	Keys
ID	smallint	unique, not null, auto-increment	PK
ShortName	varchar(10)	not null
Name	varchar(25)	not null

User table
Data item	Type	Restrictions	Keys
ID	int	unique, not null, auto-increment	PK
First Name	varchar(20)
Last Name	varchar(20)
Email	varchar(30)	not null
Password	varchar(30)	not null
DateOfBirth	Date
Score	int	not null, default:0
WeekScore	int	not null, default:0
