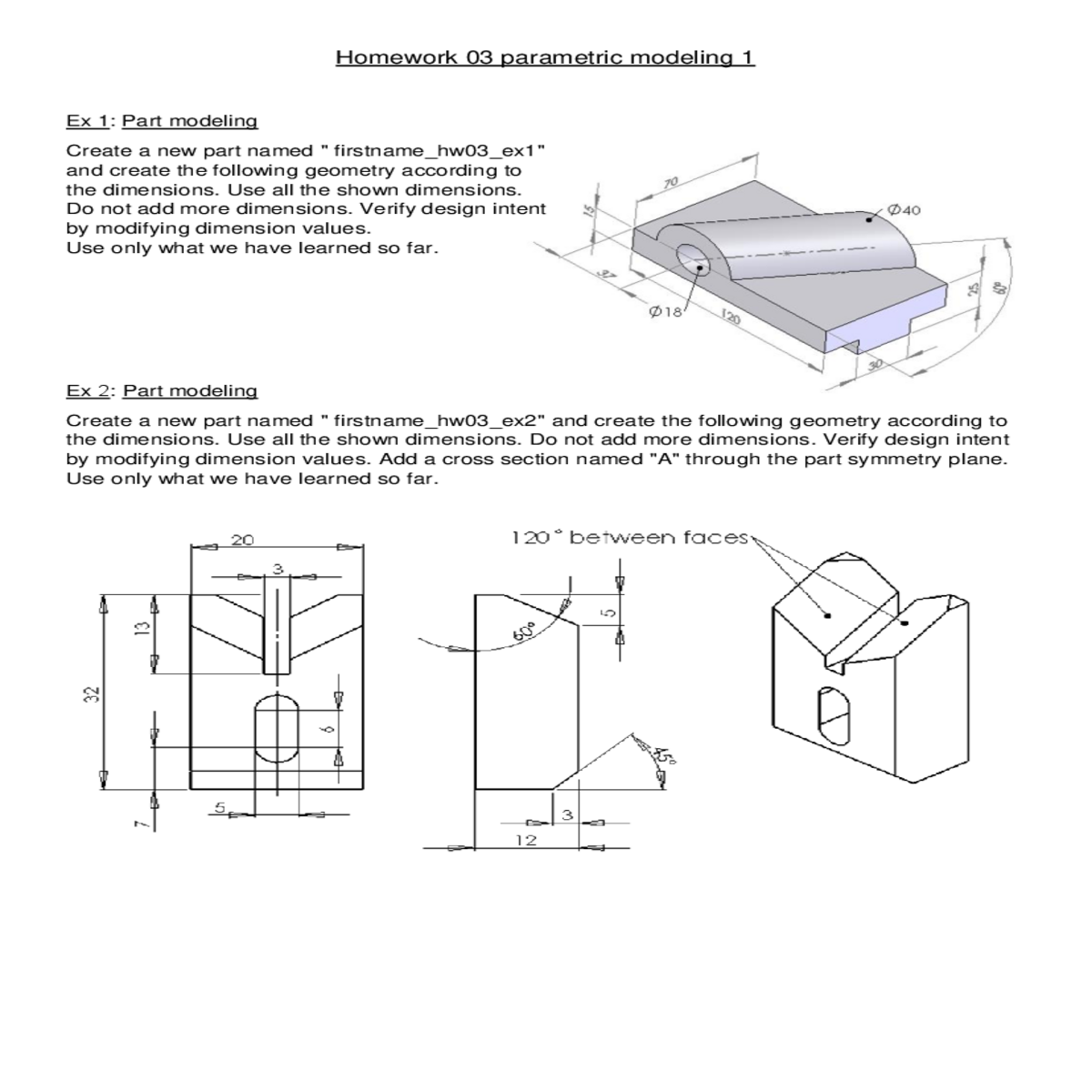

Homework 03 parametric modeling 1

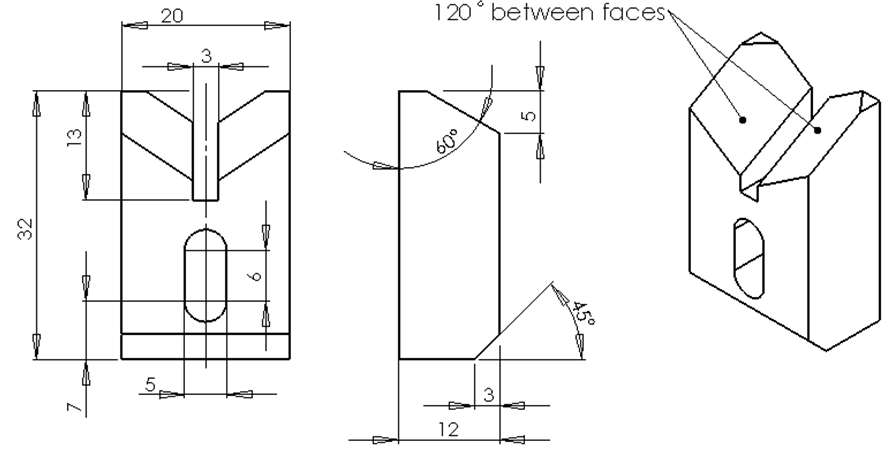

Create a new part named " firstname_hw03_ex2" and create the following geometry according to the dimensions. Use all the shown dimensions. Do not add more dimensions. Verify design intent by modifying dimension values. Add a cross section named "A" through the part symmetry plane. Use only what we have learned so far.

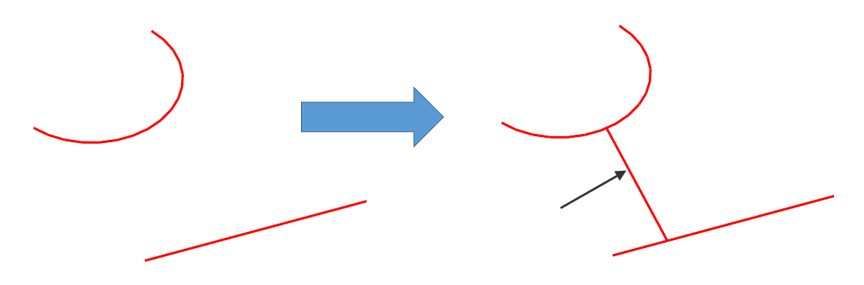

Copy the part “min_distance_line.prt” to " firstname_hw03_bonus.prt” and create the minimum distance line between the line and the arc.
