Convert the eer diagram from task logical data model

MACQUARIE UNIVERSITY COLLEGE

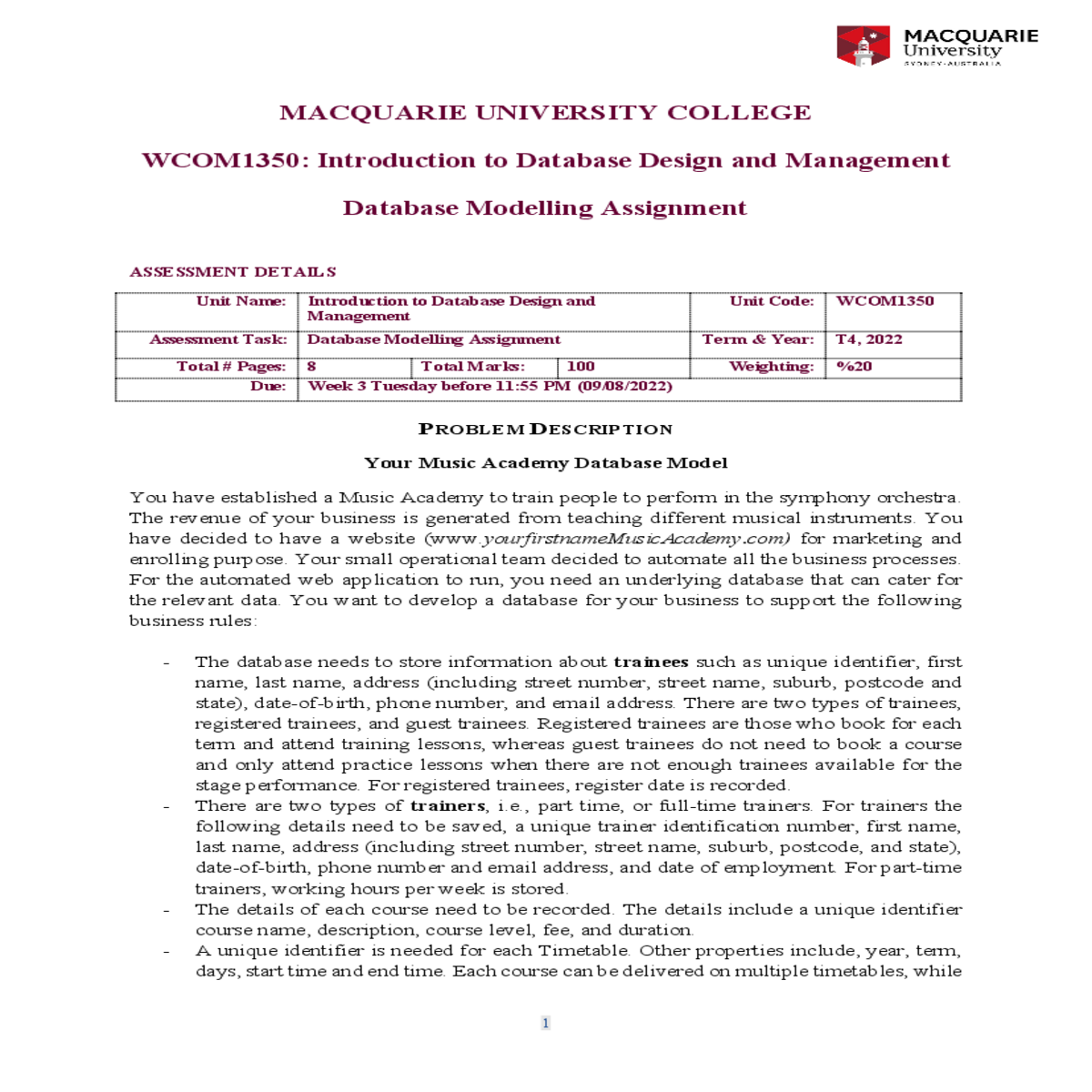

You have established a Music Academy to train people to perform in the symphony orchestra. The revenue of your business is generated from teaching different musical instruments. You have decided to have a website (www.yourfirstnameMusicAcademy.com) for marketing and enrolling purpose. Your small operational team decided to automate all the business processes. For the automated web application to run, you need an underlying database that can cater for the relevant data. You want to develop a database for your business to support the following business rules:

- The database needs to store information about trainees such as unique identifier, first name, last name, address (including street number, street name, suburb, postcode and state), date-of-birth, phone number, and email address. There are two types of trainees, registered trainees, and guest trainees. Registered trainees are those who book for each term and attend training lessons, whereas guest trainees do not need to book a course and only attend practice lessons when there are not enough trainees available for the stage performance. For registered trainees, register date is recorded.

a particular timetable is created for one course. A trainer may be assigned to different timetables. Yet, a timetable is generated for one trainer.

- Trainees can make an enquiry to get information about courses. When a trainee enquiries about a course, the date of enquiry must be stored.

- A unique identifier is needed for payment. Other properties such as payment amount, payment date, payment time and payment note are also recorded. Each payment is made for one booking. The payment could be made in several instalments.

Note 2: The EER diagram should specify the completeness (total/partial) and disjointness (disjoint/overlap) inheritance constraints on the generalization/specialization. Students need to write clearly the inheritance type on the diagram.

Task 2- LDM Diagram (25 marks)

Answer the following questions
1.Which normal form is the following table in? Why?

2.In steps, transfer the table to 3rd normalised form (i.e., from 1st normal form to 2nd normal form to the 3rd normal form)
3.In each normal form, show the tables, highlight the Primary Keys and the Foreign keys.

This is an individual task and NOT a hurdle assessment.
