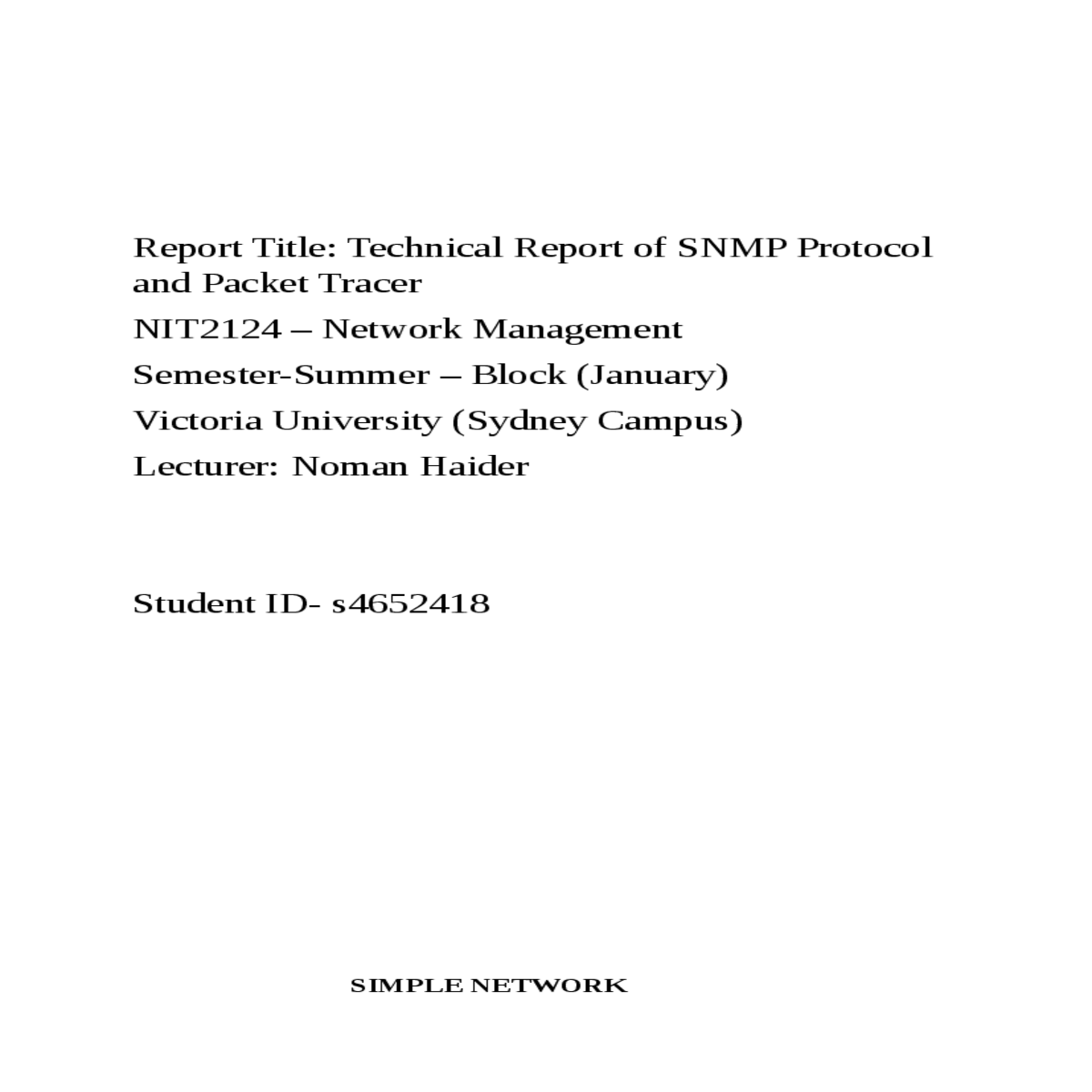

Report Title: Technical Report of SNMP Protocol and Packet Tracer
NIT2124 – Network Management
Semester-Summer – Block (January)
Victoria University (Sydney Campus)
Lecturer: Noman Haider

Student ID- s4652418

In this project, I designed a network using three routers, three pcs and three switches in a packet tracer. After configuring the IP address, the SNMP management software was installed to configure the agents and managers of the SNMP. Here, being an application programme manager, SNMP approaches the agents. SNMP Agents are servers running on a piece of equipment on a network. The Management Knowledge Base includes all information such as port number, device information, PDU, interfaces (MIB). MIB is a small text file describing an SNMPP-managed computer.

This report includes all the screenshots of a packet tracer file which clearly shows all the findings and results. SNMP, Organisational, Communication Model, Managing Organizations, are also mentioned. All the specifics of the items we have treated here have also been mentioned.

SNMP Manager PC-PT T150 is believed to be

SNMP Agents are known to be switches and routers

Organisational Model :A type of SNMP template that contains a relationship between a network

element, an agent, and a manager. The manager primarily sends requests to agents. It also helps in

Communication Model

In coordination between managers and agents, SNMP plays a critical function. Agents typically deal with messages that a boss sends. Three factors play an important role during this phase of communication:

SNMP management organizations have components such as a PC management entity, an
organized entity such as switches and routers, and network
management protocols. These management agencies are usually applications that run on central NMS. Some of the functions of these organizations are to collect information, display information, assist the administrator in interacting with a network device, processing and analyzing. .

(IBM Knowledge Center, n.d.)

Subnet Mask

Default
Gateway

192.168.1.1

192.168.1.0

192.168.3.0

PC-PT T107

For Routers:

Router R104:

S0/0/1: 192.168.5.1

Fa0/0: 192.168.3.1

Router R104:

R104#sh run
Building configuration...

!

!

no ip cef
no ipv6 cef
!

!

!

!

spanning-tree mode pvst
!

!

interface FastEthernet0/0
ip address 192.168.1.1 255.255.255.0
duplex auto
speed auto
!

interface FastEthernet0/1
no ip address
duplex auto
speed auto
!

interface Vlan1
no ip address
shutdown
!

router rip
version 2
network 192.168.1.0
network 192.168.4.0
!

!

no cdp run
!

snmp-server community cicsoRouter RW
snmp-server community public RW
!

line con 0
!

End

Router R105:

!

!

!

no ip cef
no ipv6 cef
!

!

!

!

spanning-tree mode pvst
!

!

interface FastEthernet0/0
ip address 192.168.3.1 255.255.255.0
duplex auto
speed auto
!

!

interface Serial0/1/1
no ip address
clock rate 2000000
!

!

!

!

snmp-server community public RW
snmp-server community ciscoRouter RO
!

!

end

hostname Router
!

!

!

!

!

!

!

!

!

!

interface Serial0/0/1
no ip address
clock rate 2000000
!

interface Serial0/1/0
no ip address
clock rate 2000000
!

ip flow-export version 9
!

!

!

!

login
!

!

Building configuration...

Current configuration : 1174 bytes
!

!

!

interface FastEthernet0/3
!

interface FastEthernet0/4
!

interface FastEthernet0/9
!

interface FastEthernet0/10
!

interface FastEthernet0/15
!

interface FastEthernet0/16
!

interface FastEthernet0/21
!

interface FastEthernet0/22
!

!

!

!

!

Results and conclusion:

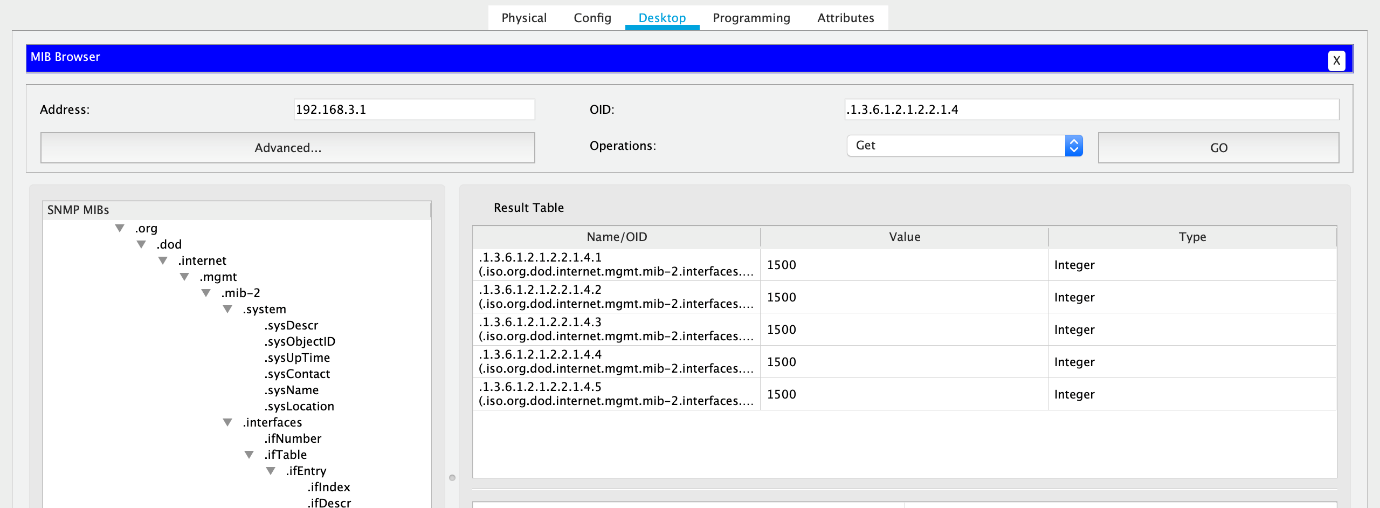

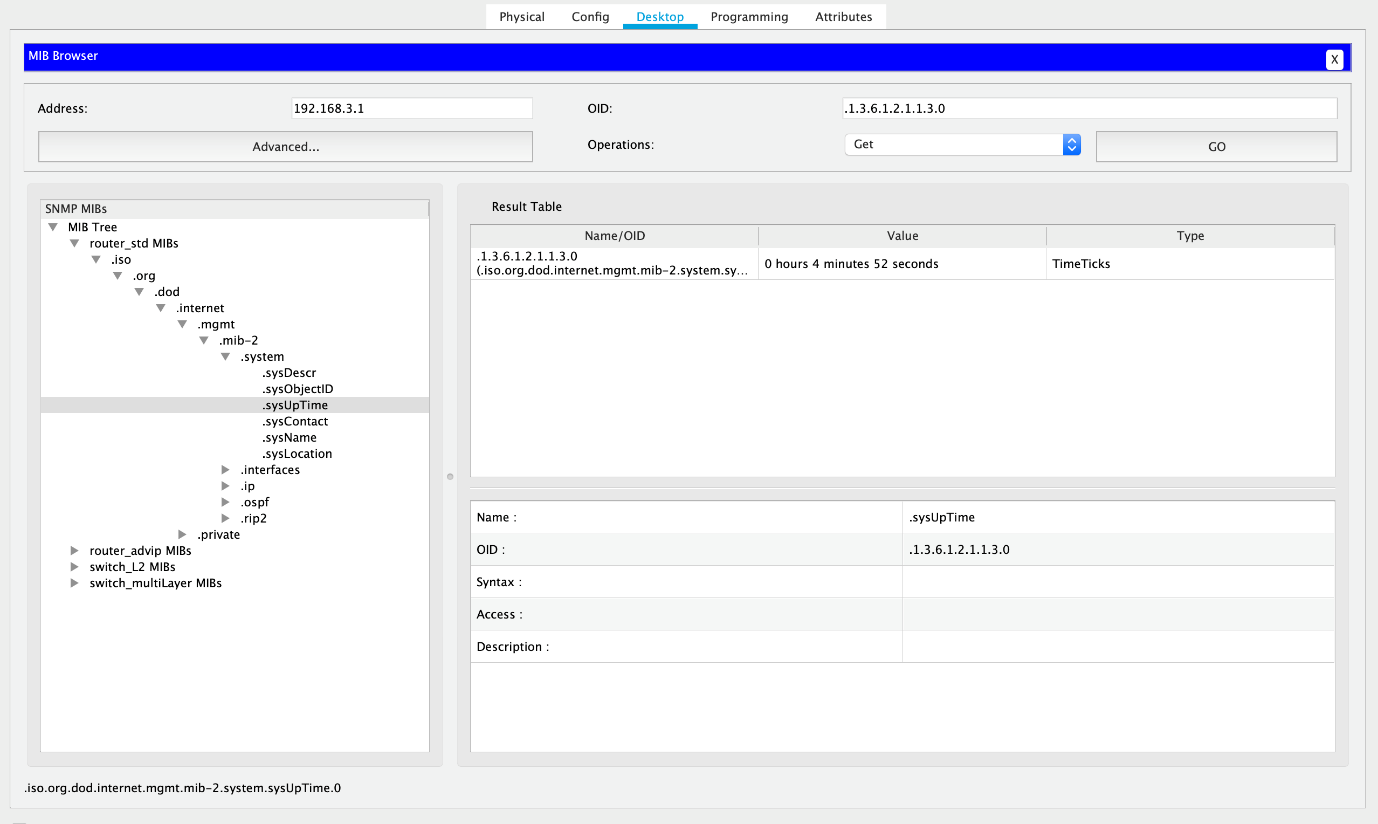

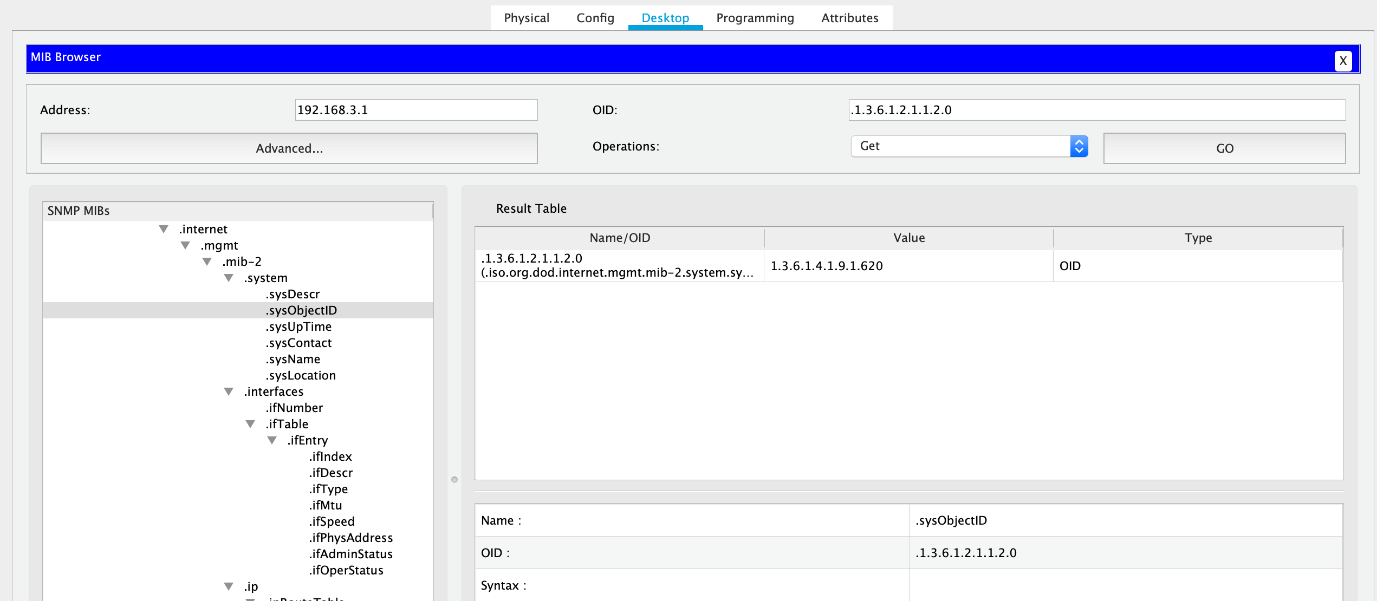

After carrying out all these processes, we carry out some processes from the MIB browser of the PCs on our network. Operations such as retrieving the object identifier description have been performed. Here are some of the findings from this project: The user is authenticated
by the SNMP community before the user gains agent access. Here, read is a password set for the read-only community. This password must match when retrieving information. The router's OID can be received by giving the router's IP address and performing SNMP operations. Below are
screenshots of the results of this project.

Now after this, the interface of the switch was changed from up to down, the

Retrieved from https://support.microsoft.com: https://support.microsoft.com/en-au/help/324263/how-to-configure-the-simple-network-management-protocol-snmp-service-i

IBM Knowledge Center. (n.d.). Retrieved from https://www.ibm.com:
https://www.ibm.com/support/knowledgecenter/en/SSLTBW_2.2.0/com.ibm.zos.v2r 2.halz002/snmp.htm
