Compares and contrasts similar protocols and services

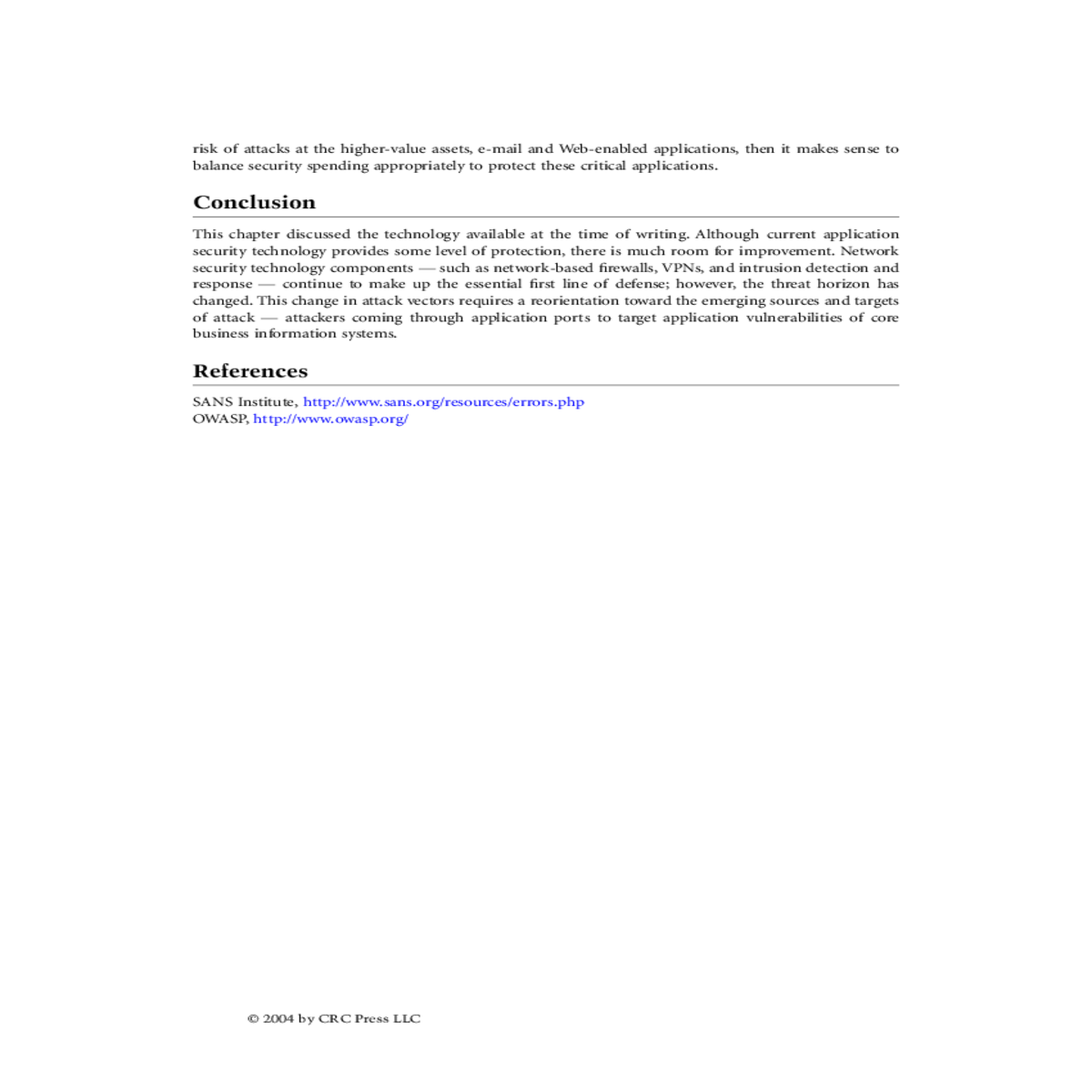

Application Layer: Next Level of Security 455

risk of attacks at the higher-value assets, e-mail and Web-enabled applications, then it makes sense to balance security spending appropriately to protect these critical applications.

© 2004 by CRC Press LLC

38
Security of
Communication
Protocols and Services

For the past century, we have trusted the dial-switched voice-analog network. It was operated by one of the most trusted enterprises in the history of the world. It was connection-switched and point-to-point. While there was some eavesdropping, most of it was initiated by law enforcement and was, for the most part, legitimate. While a few of us carefully considered what we would say, most of us used the telephone automatically and without worrying about being overheard. Similarly, we were able to recognize most of the people who called us; we trusted the millions of copies of the printed directories; and we trusted the network to connect us only to the number we dialed. While it is not completely justified, we have transferred much of that automatic trust to the modern digital network and even to the Internet.

All other things being equal, the information security manager would like to be able to ignore how information moves from one place to another. He would like to be able to assume that he can put it into a pipe at point A and have it come out reliably only at point B. Of course, in the real world of the modern integrated network, this is not the case. In this world the traffic is vulnerable to eavesdropping, misdi-rection, interference, contamination, alteration, and even total loss.

While the balance between performance and cost is often struck without regard to security, the reality is that there are security differences. The balance between performance, cost, and security is the province of the information security manager. Therefore, he needs to understand the properties and characteristics of the protocols so he can make the necessary trade-offs or evaluate those that have already been made.

Finally, all protocols have limitations and many have fundamental vulnerabilities. Implementations of protocols can compensate for such vulnerabilities only in part. Implementers may be faced with hard design choices, and they may make errors resulting in implementation-induced vulnerabilities. The manager must understand these so he will know when and how to compensate.

The Internet Protocol, IP, is a primitive and application-independent protocol for addressing and routing packets of data within a network. It is the “IP” in TCP/IP, the protocol suite that is used in and defines the Internet. It is intended for use in a relatively flat, mesh, broadcast, connectionless, packet-switched net like the Internet.

IP is analogous to a postcard in the 18th century. The sender wrote the message on one side of the card and the address and return address on the other. He then gave it to someone who was going in the general direction of the intended recipient. The message was not confidential; everyone who handled it could read it and might even make an undetected change to it.

© 2004 by CRC Press LLC

Security of Communication Protocols and Services 459

IPv6 or “next generation” is a backwardly compatible new version of IP. It is intended to permit the Internet to grow both in terms of the number of addressable devices, particularly class A addresses, and in quantity of traffic. It expands the address to 128 bits, simplifies the format header, improves the support for extensions and options, adds a “quality-of-service” capability, and adds address authentication and message confidentiality and integrity. IPv6 also formalizes the concepts of packet, node, router, host, link, and neighbors that were only loosely defined in v4.

In other words, IPng addresses most of the limitations of IP, specifically including the security limi-tations. It provides for the use of encryption to ensure that information goes only where it is intended to go. This is called secure-IP. Secure-IP may be used for point-to-point security across an arbitrary network. More often, it is used to carve virtual private networks (VPNs) or secure virtual networks (SVNs)* out of such arbitrary networks.

© 2004 by CRC Press LLC

460 Information Security Management Handbook

UDP implements the abstraction of “port,” a named logical connection or interface to a specific application or service within a device. Ports are identified by a positive integer. Port identity is local to a device, that is, the use or meaning of port number is not global. A given port number can refer to any application that the sender and receiver agree upon. However, by convention and repeated use, certain port numbers have become identified with certain applications. Exhibit 38.3 lists examples of some of these conventional port assignments.

Transmission Control Protocol (TCP)

EXHIBIT 38.3 Sample UDP Ports
