Buffer amplifier has high input impedance and low output impedance

Solved Step by Step With Explanation- Impedance Matching Strategies

Questions

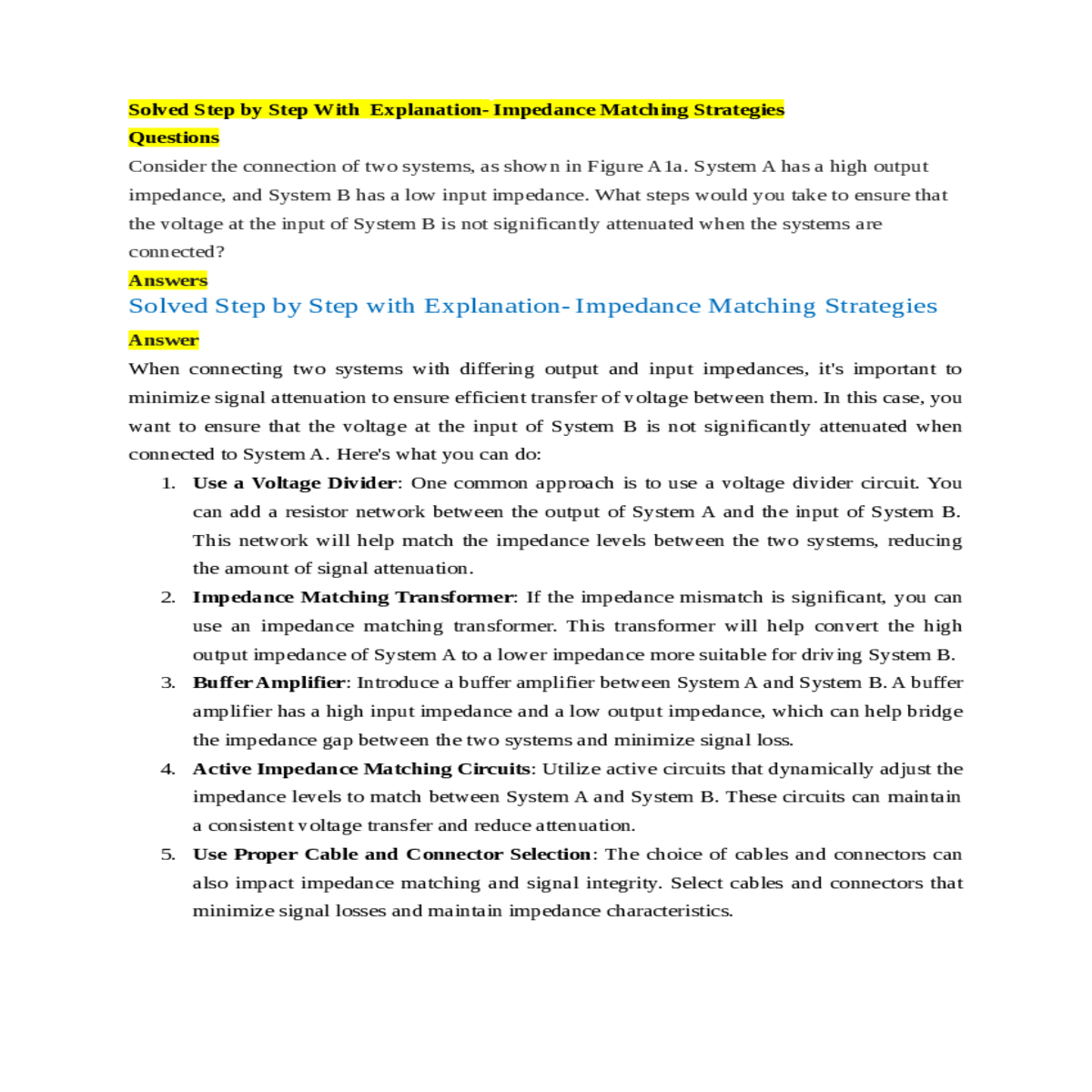

When connecting two systems with differing output and input impedances, it's important to minimize signal attenuation to ensure efficient transfer of voltage between them. In this case, you want to ensure that the voltage at the input of System B is not significantly attenuated when connected to System A. Here's what you can do:

1. Use a Voltage Divider: One common approach is to use a voltage divider circuit. You can add a resistor network between the output of System A and the input of System B. This network will help match the impedance levels between the two systems, reducing the amount of signal attenuation.

6. Circuit Analysis and Simulation: Perform thorough circuit analysis and simulations to determine the appropriate values for resistors, transformers, or other components needed for impedance matching. This can help you optimize the setup for minimal attenuation.

7. Adjust Output Levels: If possible, adjust the output levels of System A to provide a stronger signal to System B. This can compensate for some of the signal attenuation that might occur due to impedance mismatch.
