# Huffman Tree Algorithm Assignment Help Online

- Binary tree along with every non-terminal node possessing two children.
- Gives optimal (min average code length) preﬁx free binary code in order to every ‘ai∈Σo’ for any provided probabilities ‘p(ai )>0’.

## Huffman’s Algorithm:

**Step-1:** Create a terminal node for every ‘ai∈Σo’, along with probability ‘p(ai)’ and let ‘S’= the set of terminal nodes.

**Step-2:** Choose nodes ‘x’ and ‘y’ in ‘S’ using the two smallest probabilities.

**Step-3:** Substitute ‘x’ and ‘y’ in ‘S’ with a node along with probability ‘p(x)+ p(y)’. Also, create a node in the tree that is the actual parent associated with ‘x’ and ‘y’.

**Step-4:** Repeat ‘Step2-Step3’ untill ‘|S|=1’.

### Example.

Σ0 =(A,B,…,E) and

p(A) | = | 0.1 |

p(B) | = | 0.1 |

p(C) | = | 0.3 |

p(D) | = | 0.25 |

p(E) | = | 0.25 |

The nodes in S are shown shaded.

### Step1:

### Step2:

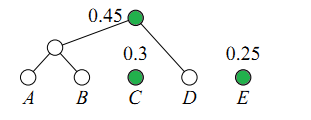

### Step3:

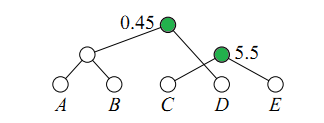

### Step4:

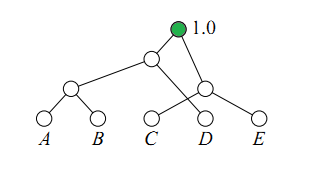

### Step5:

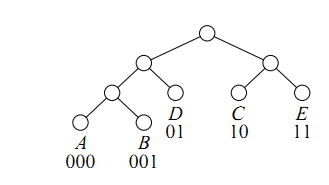

### Step6: After redrawing the tree
