AutoCAD Assignment Answer
ENGINEERING DRAWING WITH CAD FINAL EXAM

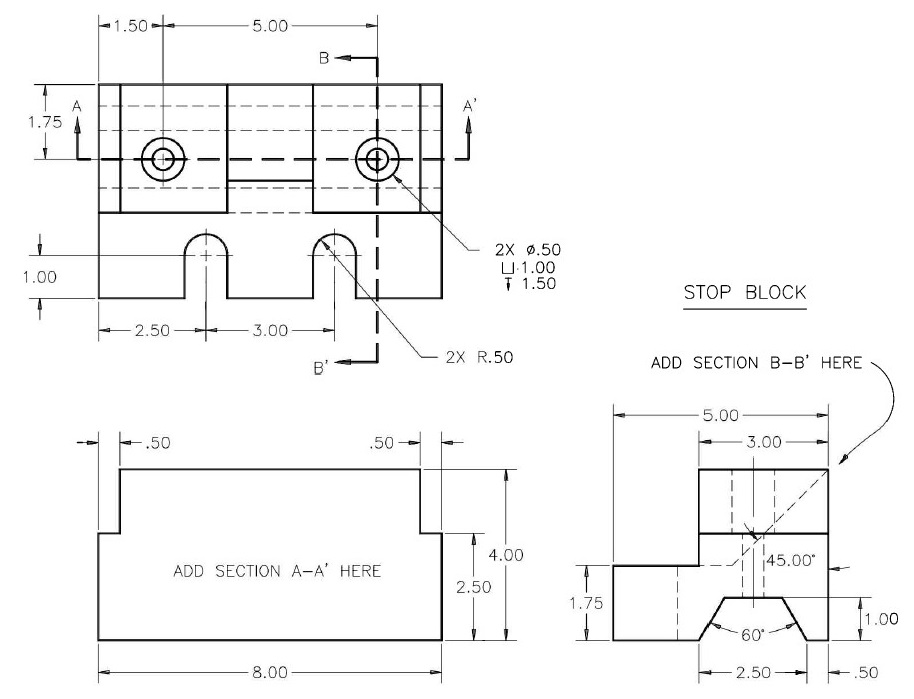

- Create the Multiview drawing and the full A-A’ and B-B’ Section Views of the Stop Block drawn below using AutoCAD.
- Add dimensions to your views.
- Apply standards.
- Submit your Final drawing with appropriate Title Block.
