Network Performance Analysis

Diagram 1 : For the network path between cities Peaebles and Thrupp, following configuration analysis was observed: It shows the round trip delay is less than 10ms

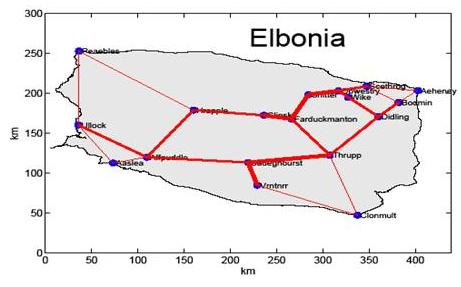

Diagram 2: Above picture represent connectivity between all the 18 cities of Elbonia.

Diagram 3: Random Average level at router slevel analysis is being shown at node Thrupp for selecting the destination node.

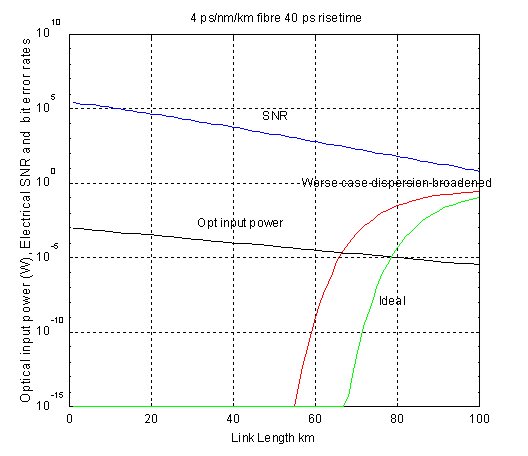

Diagram 4 : Signal to Noise Ratio in fiber

Diagram 5: SKA Configuration Analysis

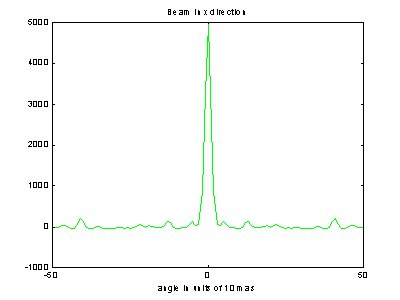

Diagram 6: Optical Wavelength analysis at beam
